Overview

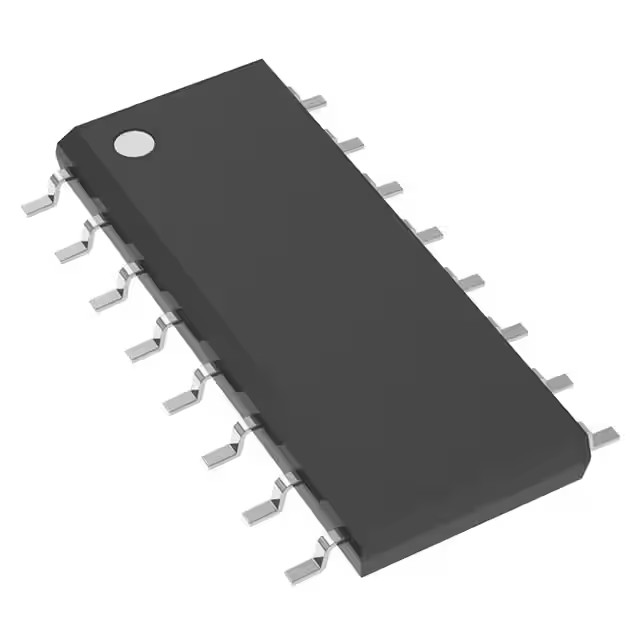

The CD4027BM96E4 is a CMOS Dual J-K Master-Slave Flip-Flop integrated circuit produced by Texas Instruments. This device is a single monolithic chip containing two identical complementary-symmetry J-K flip-flops. Each flip-flop has provisions for individual J, K, Set, and Reset inputs, making it versatile for various digital circuit applications.
Key Specifications
| Characteristic | Value | Unit |
|---|---|---|
| VDD (Operating Voltage) | 5, 10, 15 | V |
| Maximum Clock Input Frequency (Toggle Mode) | 3.5 - 16 | MHz |
| Minimum Clock Pulse Width | 20 - 140 | ns |
| Minimum Set or Reset Pulse Width | 25 - 180 | ns |
| Minimum Data Setup Time | 25 - 200 | ns |
| Maximum Input Current | 1 μA at 18 V | A |
| Noise Margin at VDD = 5 V | 1 V | V |
| Noise Margin at VDD = 10 V | 2 V | V |
| Noise Margin at VDD = 15 V | 2.5 V | V |
| Package Types | SOIC D, SOP NS, TSSOP PW |
Key Features
- Set-reset capability.
- Static flip-flop operation – retains state indefinitely with clock level either high or low.
- Medium speed operation – typical clock toggle rate of 16 MHz at 10 V.
- Standardized symmetrical output characteristics.
- 100% tested for quiescent current at 20 V.
- Maximum input current of 1 μA at 18 V over full package-temperature range.
- Noise margin over full package-temperature range.
- Meets all requirements of JEDEC tentative standard No. 138 for 'B' series CMOS devices.
Applications
- Registers.
- Counters.
- Control circuits.
Q & A
- What is the CD4027BM96E4? The CD4027BM96E4 is a CMOS Dual J-K Master-Slave Flip-Flop integrated circuit.
- Who is the manufacturer of the CD4027BM96E4? The manufacturer is Texas Instruments.
- What are the operating voltages for the CD4027BM96E4? The operating voltages are 5 V, 10 V, and 15 V.
- What is the maximum clock input frequency for the CD4027BM96E4? The maximum clock input frequency is typically 16 MHz at 10 V.
- What are the package types available for the CD4027BM96E4? The package types include SOIC D, SOP NS, and TSSOP PW.
- What are the key features of the CD4027BM96E4? Key features include set-reset capability, static flip-flop operation, medium speed operation, and standardized symmetrical output characteristics.
- What are the typical applications of the CD4027BM96E4? Typical applications include registers, counters, and control circuits.
- What is the noise margin of the CD4027BM96E4 at different VDD levels? The noise margin is 1 V at VDD = 5 V, 2 V at VDD = 10 V, and 2.5 V at VDD = 15 V.
- Is the CD4027BM96E4 tested for quiescent current? Yes, it is 100% tested for quiescent current at 20 V.
- What is the maximum input current of the CD4027BM96E4? The maximum input current is 1 μA at 18 V over the full package-temperature range.
