Overview

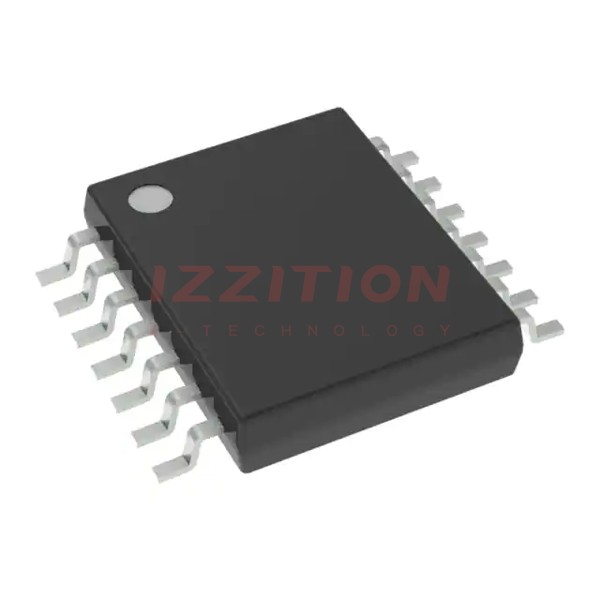

The CD4011BPWRG4 is a CMOS quad 2-input NAND gate produced by Texas Instruments. This component is part of the CD4011B series, which provides system designers with direct implementation of the NAND logic function. The CD4011B series supplements the existing family of CMOS gates and is known for its buffered inputs and outputs, standardized symmetrical output characteristics, and low power consumption. The device is available in various package types, including the Thin Shrink Small-Outline Package (TSSOP) for the CD4011BPWRG4 variant.
Key Specifications
| Specification | Value |
|---|---|
| Package Type | TSSOP (Thin Shrink Small-Outline Package) |
| Pins | 14 |
| Operating Temperature Range | -55°C to 125°C |
| Propagation Delay Time | 60 ns (typ.) at CL = 50 pF, VDD = 10 V |
| Maximum Input Current | 1 µA at 18 V over full package temperature range; 100 nA at 18 V and 25°C |
| Noise Margin | 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 V at VDD = 15 V |
| Quiescent Current | 100% tested at 20 V |
| Parametric Ratings | 5-V, 10-V, and 15-V |
| Compliance | Meets all requirements of JEDEC Tentative Standard No. 13B |
Key Features
- Buffered inputs and outputs
- Standardized symmetrical output characteristics
- Low power consumption
- High noise margin: 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 V at VDD = 15 V
- Wide operating temperature range: -55°C to 125°C
- Available in various package types including TSSOP, PDIP, CDIP, SOIC, and SOP
Applications
The CD4011BPWRG4 is suitable for a variety of digital logic applications where NAND gate functionality is required. It can be used in digital circuits for logic operations, signal processing, and control systems. The component is particularly useful in environments where low power consumption and high noise immunity are critical.
- Digital logic circuits
- Signal processing systems
- Control systems
- Embedded systems
- Industrial automation
Q & A
- What is the CD4011BPWRG4? The CD4011BPWRG4 is a CMOS quad 2-input NAND gate produced by Texas Instruments.
- What package type does the CD4011BPWRG4 come in? The CD4011BPWRG4 comes in a Thin Shrink Small-Outline Package (TSSOP).
- What is the operating temperature range of the CD4011BPWRG4? The operating temperature range is -55°C to 125°C.
- What is the propagation delay time of the CD4011BPWRG4? The propagation delay time is 60 ns (typ.) at CL = 50 pF, VDD = 10 V.
- What are the noise margins for the CD4011BPWRG4? The noise margins are 1 V at VDD = 5 V, 2 V at VDD = 10 V, and 2.5 V at VDD = 15 V.
- Is the CD4011BPWRG4 suitable for new designs? The CD4011B series is not recommended for new designs as it is in the NRND (Not Recommended for New Designs) status, but it is still available for existing customers.
- What are the parametric ratings for the CD4011BPWRG4? The parametric ratings are 5-V, 10-V, and 15-V.
- Does the CD4011BPWRG4 meet any specific standards? Yes, it meets all requirements of JEDEC Tentative Standard No. 13B.
- What are some common applications of the CD4011BPWRG4? It is commonly used in digital logic circuits, signal processing systems, control systems, embedded systems, and industrial automation.
- What is the maximum input current for the CD4011BPWRG4? The maximum input current is 1 µA at 18 V over the full package temperature range; 100 nA at 18 V and 25°C.
