Overview

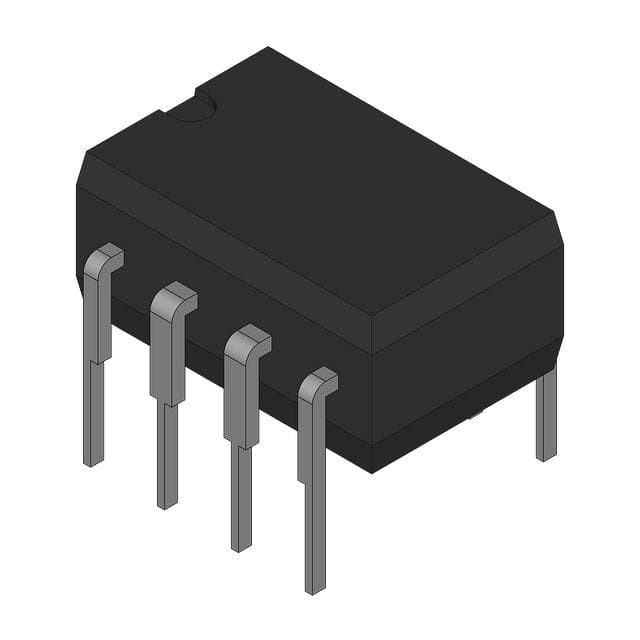

The CD40107BEG4 is a dual 2-input NAND buffer/driver produced by Texas Instruments. This device contains two independent 2-input NAND buffers with open-drain single n-channel transistor outputs. It is designed to provide high output sink current capability and features a wired-OR capability, making it versatile for various applications. The CD40107BEG4 is available in several package types, including hermetic dual-in-line ceramic, dual-in-line plastic, small-outline, and thin shrink small-outline packages.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | PDIP, CDIP, SOIC, TSSOP |
| Pins | 8 |
| Operating Temperature Range (°C) | -55 to 125 |
| Output Current Drive (typ. @ VDD = 10 V, VDS = 1 V) | 136 mA |
| Quiescent Current Test Voltage | 20 V |
| Maximum Input Current (at 18 V over full package-temperature range) | 1 µA |
| Noise Margin (at VDD = 10 V) | 2 V |
| Parametric Ratings | 5 V, 10 V, 15 V |
Key Features
- High output sink current capability: 136 mA typical at VDD = 10 V, VDS = 1 V.
- Wired-OR capability.
- 100% tested for quiescent current at 20 V.
- Maximum input current of 1 µA at 18 V over the full package-temperature range.
- Noise margin: 1 V at VDD = 5 V, 2 V at VDD = 10 V, and 2.5 V at VDD = 15 V.
- Meets all requirements of JEDEC Tentative Standard No. 13B, 'Standard Specifications for Description of 'B' Series CMOS Devices'.
Applications
- Driving relays, lamps, LEDs.
- Line driver.
- Level shifter (up or down).
Q & A
- What is the CD40107BEG4?
The CD40107BEG4 is a dual 2-input NAND buffer/driver produced by Texas Instruments, featuring two independent 2-input NAND buffers with open-drain single n-channel transistor outputs.
- What are the available package types for the CD40107BEG4?
The CD40107BEG4 is available in PDIP, CDIP, SOIC, and TSSOP packages.
- What is the operating temperature range of the CD40107BEG4?
The operating temperature range is -55°C to 125°C.
- What is the typical output current drive of the CD40107BEG4?
The typical output current drive is 136 mA at VDD = 10 V, VDS = 1 V.
- What is the maximum input current of the CD40107BEG4?
The maximum input current is 1 µA at 18 V over the full package-temperature range.
- What are the parametric ratings for the CD40107BEG4?
The parametric ratings are 5 V, 10 V, and 15 V.
- What are some common applications of the CD40107BEG4?
Common applications include driving relays, lamps, LEDs, line drivers, and level shifters (up or down).
- Does the CD40107BEG4 meet any specific industry standards?
Yes, it meets all requirements of JEDEC Tentative Standard No. 13B, 'Standard Specifications for Description of 'B' Series CMOS Devices'.
- What is the noise margin of the CD40107BEG4?
The noise margin is 1 V at VDD = 5 V, 2 V at VDD = 10 V, and 2.5 V at VDD = 15 V.
- Is the CD40107BEG4 100% tested for quiescent current?
Yes, it is 100% tested for quiescent current at 20 V.
