Overview

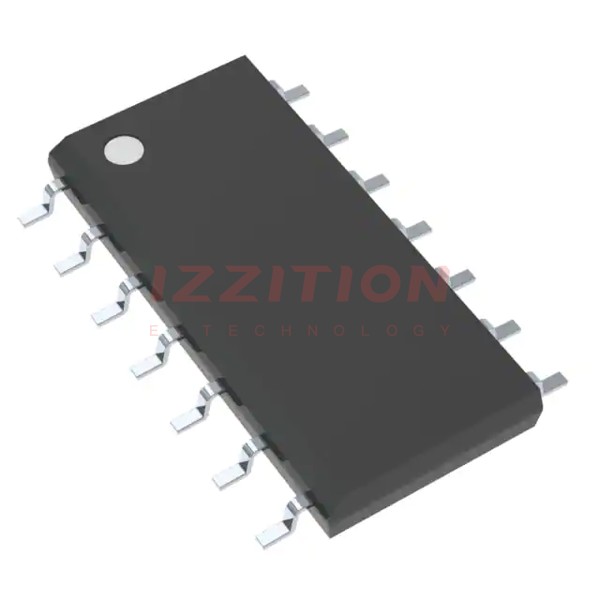

The CD4001BM96G4 is a CMOS quad 2-input NOR gate integrated circuit produced by Texas Instruments. This component is part of the 4000 series of CMOS logic gates and is designed to provide a direct implementation of the NOR logic function. It is available in a 14-pin SOIC (Small Outline Integrated Circuit) package, making it suitable for a wide range of digital logic applications.
Key Specifications
Parameter | Value | Unit |
---|---|---|
Package Type | SOIC (D) | |
Number of Pins | 14 | |
Supply Voltage Range | 3 V to 18 V | V |
Propagation Delay Time | 60 ns (typ.) at CL = 50 pF, V_DD = 10 V | ns |
Operating Temperature Range | -55°C to 125°C | °C |
Maximum Input Current | 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C | A |
Noise Margin | 1 V at V_DD = 5 V, 2 V at V_DD = 10 V, 2.5 V at V_DD = 15 V | V |
Output Current | 6.8 mA | mA |
RoHS Compliance | Yes |
Key Features
- Buffered inputs and outputs
- Standardized symmetrical output characteristics
- 100% tested for maximum quiescent current at 20 V
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, 'Standard Specifications for Description of B Series CMOS Devices'
Applications
The CD4001BM96G4 is suitable for various digital logic applications, including but not limited to:
- Digital circuits requiring NOR logic functions
- Low-power CMOS logic designs
- Automotive and industrial control systems
- Consumer electronics and embedded systems
Q & A
- What is the package type of the CD4001BM96G4?
The CD4001BM96G4 is packaged in a 14-pin SOIC (Small Outline Integrated Circuit) package.
- What is the supply voltage range for the CD4001BM96G4?
The supply voltage range is from 3 V to 18 V.
- What is the propagation delay time for the CD4001BM96G4?
The propagation delay time is typically 60 ns at CL = 50 pF and V_DD = 10 V.
- What is the operating temperature range for the CD4001BM96G4?
The operating temperature range is from -55°C to 125°C.
- Is the CD4001BM96G4 RoHS compliant?
Yes, the CD4001BM96G4 is RoHS compliant.
- What are the key features of the CD4001BM96G4?
Key features include buffered inputs and outputs, standardized symmetrical output characteristics, and 100% testing for maximum quiescent current at 20 V.
- What are some common applications for the CD4001BM96G4?
Common applications include digital circuits requiring NOR logic functions, low-power CMOS logic designs, automotive and industrial control systems, and consumer electronics.
- What is the maximum input current for the CD4001BM96G4?
The maximum input current is 1 µA at 18 V over the full package-temperature range and 100 nA at 18 V and 25°C.
- What is the noise margin for the CD4001BM96G4?
The noise margin is 1 V at V_DD = 5 V, 2 V at V_DD = 10 V, and 2.5 V at V_DD = 15 V.
- Does the CD4001BM96G4 meet any specific industry standards?
Yes, it meets all requirements of JEDEC Tentative Standard No. 13B, 'Standard Specifications for Description of B Series CMOS Devices'.
