AM26C31INSR
  • Share:

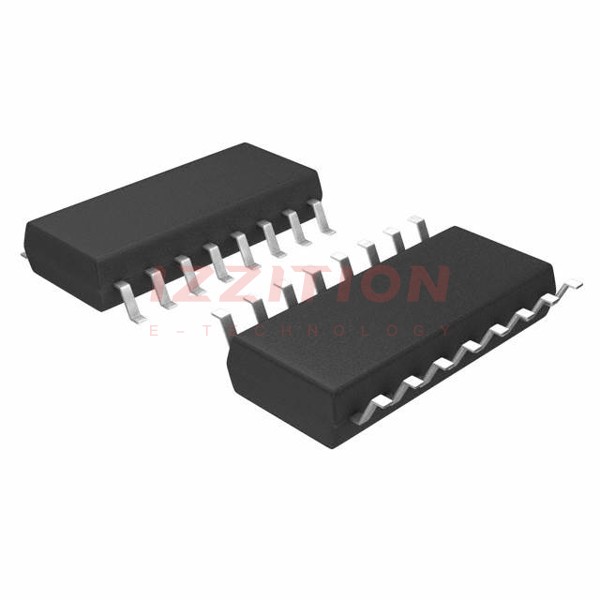

Texas Instruments AM26C31INSR

Manufacturer No:
AM26C31INSR
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC DRIVER 4/0 16SO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AM26C31INSR, produced by Texas Instruments, is a quadruple differential line driver designed to meet the requirements of TIA/EIA-422-B and ITU (formerly CCITT) standards. This device features complementary outputs and is optimized for driving balanced lines such as twisted-pair or parallel-wire transmission lines. The AM26C31INSR operates from a single 5V supply and is characterized by its low power consumption and high-speed operation, making it suitable for a variety of applications including industrial, military, and automotive sectors.

Key Specifications

ParameterValue
Operating Voltage5V
Operating Temperature Range-40°C to +85°C (AM26C31I), -40°C to +125°C (AM26C31Q), -55°C to +125°C (AM26C31M)
Power Consumption (ICC)100µA typical
Propagation Delay (tPLH, tPHL)7ns typical
Pulse Distortion (tsk(p))0.5ns typical
Output Impedance in Power-OffHigh impedance
Package TypesSOIC, PDIP, SO, CFP, SSOP, TSSOP

Key Features

  • Meets or exceeds the requirements of TIA/EIA-422-B and ITU recommendation V.11
  • Low power consumption, ICC = 100µA typical
  • Operates from a single 5V supply
  • High speed, tPLH = tPHL = 7ns typical
  • Low pulse distortion, tsk(p) = 0.5ns typical
  • High output impedance in power-off conditions
  • Improved replacement for AM26LS31 device
  • Available in Q-temp automotive and military temperature ranges
  • BiCMOS circuitry reduces power consumption without sacrificing speed

Applications

  • Chemical and gas sensors
  • Field transmitters: temperature sensors and pressure sensors
  • Military: radars and sonars
  • Motor control: brushless DC and brushed DC
  • Military and avionics imaging
  • Temperature sensors and controllers using Modbus

Q & A

  1. What are the main standards that the AM26C31INSR complies with? The AM26C31INSR complies with TIA/EIA-422-B and ITU recommendation V.11 standards.
  2. What is the typical power consumption of the AM26C31INSR? The typical power consumption is 100µA.
  3. What is the operating voltage of the AM26C31INSR? The device operates from a single 5V supply.
  4. What are the propagation delay times for the AM26C31INSR? The propagation delay times (tPLH and tPHL) are 7ns typical.
  5. What is the pulse distortion specification for the AM26C31INSR? The pulse distortion (tsk(p)) is 0.5ns typical.
  6. What happens to the output impedance when the device is in power-off conditions? The output impedance is high in power-off conditions.
  7. Is the AM26C31INSR suitable for automotive applications? Yes, it is available in Q-temp automotive and meets automotive standards.
  8. What are the temperature ranges for different versions of the AM26C31? The temperature ranges vary: -40°C to +85°C (AM26C31I), -40°C to +125°C (AM26C31Q), and -55°C to +125°C (AM26C31M).
  9. What types of packages are available for the AM26C31INSR? The device is available in SOIC, PDIP, SO, CFP, SSOP, and TSSOP packages.
  10. Does the AM26C31INSR have any special features for military applications? Yes, it is qualified to MIL-PRF-38535 standards and has extended temperature performance for military applications.

Product Attributes

Type:Driver
Protocol:-
Number of Drivers/Receivers:4/0
Duplex:-
Receiver Hysteresis:-
Data Rate:-
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.209", 5.30mm Width)
Supplier Device Package:16-SO
0 Remaining View Similar

In Stock

$1.35
739

Please send RFQ , we will respond immediately.

Same Series
RD15S10HT0/AA
RD15S10HT0/AA
CONN D-SUB RCPT 15POS CRIMP
DD15S2S0V50
DD15S2S0V50
CONN D-SUB HD RCPT 15P SLDR CUP
DD26M2S5WV5Z/AA
DD26M2S5WV5Z/AA
CONN D-SUB HD PLUG 26P SLDR CUP
CBC46W4S1S500S
CBC46W4S1S500S
CONN D-SUB RCPT 46POS CRIMP
DD26S200E3X
DD26S200E3X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0T2X/AA
DD26S2S0T2X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V30
DD26S200V30
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0T20
DD26S2S0T20
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32000X/AA
DD44S32000X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S500X
DD44S32S500X
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S0V3X/AA
DD44S32S0V3X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S50T2X/AA
DD44S32S50T2X/AA
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number AM26C31INSR AM26C32INSR AM26C31CNSR
Manufacturer Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active
Type Driver Receiver Driver
Protocol - RS422, RS423 -
Number of Drivers/Receivers 4/0 0/4 4/0
Duplex - - -
Receiver Hysteresis - 60 mV -
Data Rate - - -
Voltage - Supply 4.5V ~ 5.5V 4.5V ~ 5.5V 4.5V ~ 5.5V
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C 0°C ~ 70°C
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 16-SOIC (0.209", 5.30mm Width) 16-SOIC (0.209", 5.30mm Width) 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package 16-SO 16-SO 16-SO
