Overview
The ADS8412IBPFBTG4 is a high-performance, 16-bit, 2 MSPS analog-to-digital converter (ADC) produced by Texas Instruments. This component is designed for applications requiring high-speed and high-resolution data acquisition. It features a unipolar differential input and a parallel interface, making it suitable for precision measurement systems. The ADS8412IBPFBTG4 is targeted at industries such as medical equipment, industrial automation, and test and measurement, where accuracy and speed are critical. Its competitive edge lies in its low power consumption and high-speed performance, making it an ideal choice for demanding applications.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 16 | Bit | |
| Sampling Rate | 2 | MSPS | |
| Input Type | Unipolar Differential | ||
| Interface | Parallel | ||
| Power Consumption | 175 | mW | |
| Operating Temperature | -40 to +85 | °C | |
| Package | 48-TQFP | 7x7 mm |
Key Features
- High-resolution 16-bit ADC for precise data acquisition.
- High-speed sampling rate of 2 MSPS for real-time applications.
- Unipolar differential input for improved noise immunity.
- Low power consumption, ideal for portable and battery-operated devices.
- Parallel interface for easy integration with microcontrollers and processors.
Applications
The ADS8412IBPFBTG4 is widely used in various industries due to its high performance and reliability. In medical equipment, it is employed in patient monitoring systems and diagnostic instruments. In industrial automation, it is utilized for process control and data acquisition systems. Additionally, it finds applications in test and measurement equipment, where high accuracy and speed are essential. Its robust design and low power consumption make it suitable for portable and field-deployable devices.
Q & A
1. What is the resolution of the ADS8412IBPFBTG4?
The ADS8412IBPFBTG4 has a resolution of 16 bits.
2. What is the sampling rate of this ADC?
The sampling rate is 2 MSPS (Mega Samples Per Second).
3. What type of input does the ADS8412IBPFBTG4 support?
It supports unipolar differential input.
4. What is the power consumption of this component?
The power consumption is 175 mW.
5. What is the operating temperature range?
The operating temperature range is -40°C to +85°C.

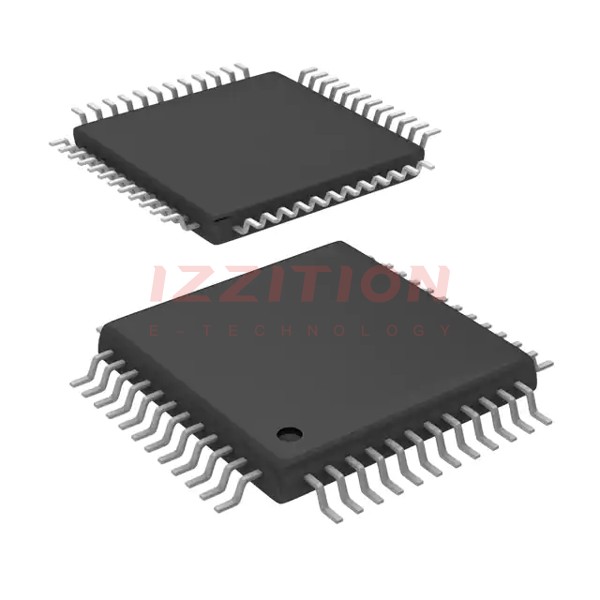

6. What package does the ADS8412IBPFBTG4 come in?
It comes in a 48-TQFP package with dimensions of 7x7 mm.
7. What industries is this ADC suitable for?
It is suitable for medical equipment, industrial automation, and test and measurement industries.
8. Does the ADS8412IBPFBTG4 have a parallel interface?
Yes, it features a parallel interface for easy integration.
9. Is this component RoHS compliant?
Yes, it is RoHS compliant.
10. Can the ADS8412IBPFBTG4 be used in portable devices?
Yes, its low power consumption makes it ideal for portable and battery-operated devices.
