Overview

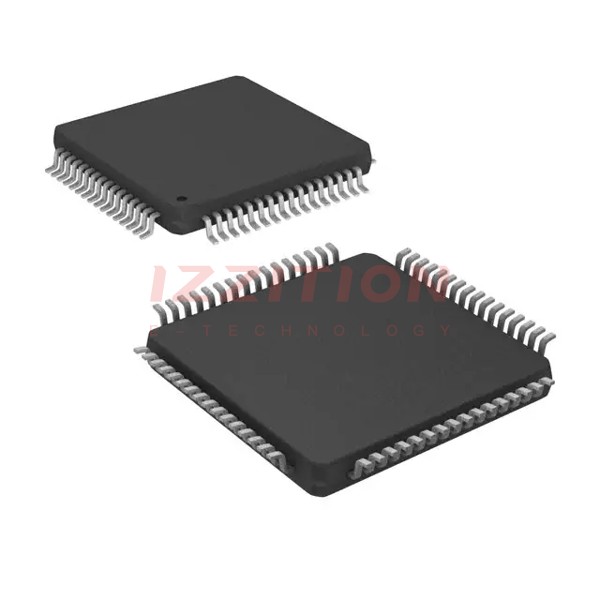

The ADS8365IPAGG4 is a high-performance, 16-bit, 6-channel simultaneous sampling analog-to-digital converter (ADC) manufactured by Texas Instruments. This ADC is designed for applications requiring high accuracy and speed, such as industrial automation, medical imaging, and precision instrumentation. Its unique selling points include a high sampling rate of 250 kSPS, differential input type, and a wide operating temperature range, making it suitable for demanding environments.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Channels | 6 | Channel | Simultaneous sampling |
| Resolution | 16 | bit | |
| Sampling Rate | 250 | kSPS | |
| Input Type | Differential | ||
| Interface Type | Parallel | ||
| Operating Voltage | 5 | V | |
| Operating Temperature | -40 to +85 | °C | |
| Package | TQFP-64 | ||
| Power Dissipation | 241 | mW | Max |
| SNR | 88 | dB |
Key Features
- High-resolution 16-bit ADC for precise measurements.
- 6-channel simultaneous sampling capability for multi-channel applications.
- Differential input type reduces noise and improves signal integrity.
- Wide operating temperature range (-40°C to +85°C) ensures reliability in harsh environments.
- Parallel interface for fast data transfer.
Applications
The ADS8365IPAGG4 is ideal for applications requiring high-speed and high-accuracy data acquisition. It is commonly used in industrial automation for process control, in medical imaging for high-resolution signal processing, and in precision instrumentation for accurate measurements. Its robust design and high performance make it a preferred choice for engineers in demanding fields.
Q & A
1. What is the resolution of the ADS8365IPAGG4?
The ADS8365IPAGG4 has a resolution of 16 bits.
2. How many channels does the ADS8365IPAGG4 support?
It supports 6 channels with simultaneous sampling.
3. What is the sampling rate of the ADS8365IPAGG4?
The sampling rate is 250 kSPS.
4. What type of input does the ADS8365IPAGG4 use?
It uses differential input.
5. What is the operating voltage of the ADS8365IPAGG4?
The operating voltage is 5V.
6. What is the operating temperature range of the ADS8365IPAGG4?
It operates from -40°C to +85°C.
7. What package does the ADS8365IPAGG4 come in?
It comes in a TQFP-64 package.
8. What is the maximum power dissipation of the ADS8365IPAGG4?
The maximum power dissipation is 241 mW.
9. What is the SNR of the ADS8365IPAGG4?
The SNR is 88 dB.
10. What are the typical applications of the ADS8365IPAGG4?
Typical applications include industrial automation, medical imaging, and precision instrumentation.
