ADS8364Y/250
  • Share:

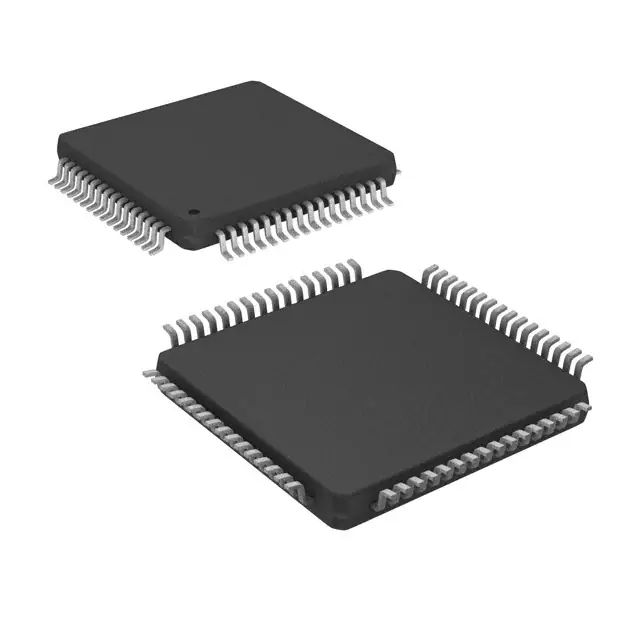

Texas Instruments ADS8364Y/250

Manufacturer No:
ADS8364Y/250
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC ADC 16BIT SAR 64TQFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ADS8364Y/250 is a high-performance, 6-channel, 16-bit simultaneous sampling Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC) produced by Texas Instruments. This component is designed for high-speed signal acquisition and is particularly suited for applications in motor control, multi-axis positioning systems, and 3-phase power control. The ADS8364Y/250 features a compact TQFP-64 package and operates over an industrial temperature range of -40°C to 85°C, making it versatile for various industrial and commercial environments.

Key Specifications

Parameter Value
Manufacturer Texas Instruments
Part Number ADS8364Y/250
Package TQFP-64
Resolution 16 bits
Sample Rate (max) 250 kSPS
Number of Input Channels 6
Interface Type Parallel
Input Type Pseudo-Differential
Multi-Channel Configuration Simultaneous Sampling
Operating Temperature Range -40°C to 85°C
Power Consumption (typ) 413.1 mW
Analog Supply Voltage (min/max) 4.75 V / 5.25 V
Digital Supply Voltage (min/max) 2.7 V / 5.5 V
SNR 83.2 dB
Reference Mode External, Internal

Key Features

  • High-Speed Signal Acquisition: The ADS8364Y/250 offers a sample rate of up to 250 kSPS, making it suitable for high-speed applications.
  • Simultaneous Sampling: This ADC features six independent 16-bit ADCs with simultaneous sampling capability, ideal for applications requiring synchronized data acquisition.
  • Fully Differential Inputs: The inputs to the sample-and-hold amplifiers are fully differential, providing excellent common-mode rejection of 80 dB at 50 kHz.
  • Low Power Consumption: The device operates with a typical power consumption of 413.1 mW, making it energy-efficient.
  • Flexible Interface: The ADS8364Y/250 offers a flexible high-speed parallel interface with direct address mode, cycle mode, and FIFO mode.
  • Buffered Reference Inputs: The ADC includes buffered reference inputs for improved performance.

Applications

  • Motor Control: The ADS8364Y/250 is well-suited for motor control applications due to its high-speed and simultaneous sampling capabilities.
  • Multi-Axis Positioning Systems: This ADC is ideal for systems that require precise and synchronized data acquisition across multiple axes.
  • 3-Phase Power Control: The device is also used in 3-phase power control systems where high accuracy and speed are critical.

Q & A

  1. What is the resolution of the ADS8364Y/250 ADC?

    The resolution of the ADS8364Y/250 is 16 bits.

  2. How many input channels does the ADS8364Y/250 have?

    The ADS8364Y/250 has 6 input channels.

  3. What is the maximum sample rate of the ADS8364Y/250?

    The maximum sample rate is 250 kSPS.

  4. What type of interface does the ADS8364Y/250 use?

    The ADS8364Y/250 uses a parallel interface.

  5. What is the operating temperature range of the ADS8364Y/250?

    The operating temperature range is -40°C to 85°C.

  6. Is the ADS8364Y/250 RoHS compliant?
  7. What is the typical power consumption of the ADS8364Y/250?

    The typical power consumption is 413.1 mW.

  8. What are the common applications of the ADS8364Y/250?
  9. What type of input does the ADS8364Y/250 have?

    The ADS8364Y/250 has pseudo-differential inputs.

  10. Does the ADS8364Y/250 support simultaneous sampling?

Product Attributes

Number of Bits:16
Sampling Rate (Per Second):250k
Number of Inputs:6
Input Type:Differential
Data Interface:Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:6
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:5V
Features:Selectable Address, Simultaneous Sampling
Operating Temperature:-40°C ~ 85°C
Package / Case:64-TQFP
Supplier Device Package:64-TQFP (10x10)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$39.22
25

Please send RFQ , we will respond immediately.
