Overview

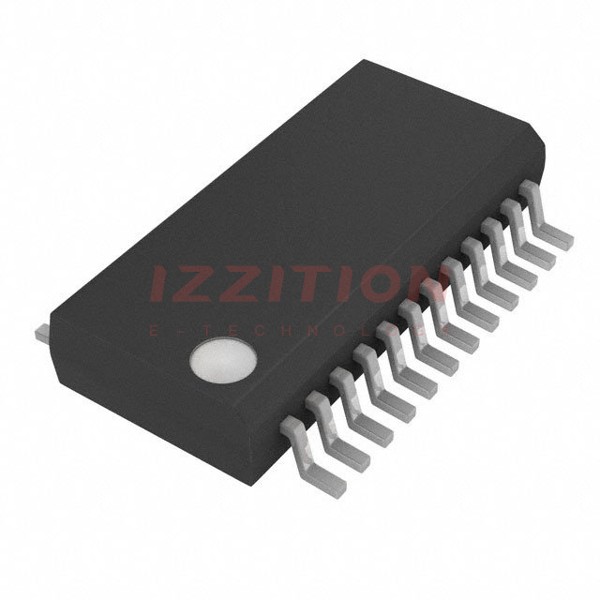

The ADS8361IDBQRG4, produced by Texas Instruments, is a dual, 16-bit, 500kSPS Analog-to-Digital (A/D) converter. This component is designed for high-speed, simultaneous signal acquisition and features four fully differential input channels grouped into two pairs. It is particularly suited for applications requiring precise and simultaneous sampling of multiple analog signals.
The ADS8361 offers low power consumption of 150mW, an internal 2.5V reference, and a flexible serial interface. It is available in SSOP-24 and QFN-32 (5x5) packages and is fully specified over an operating temperature range of –40°C to +125°C.
Key Specifications
| Parameter | Min | Typ | Max | Units | Comments |
|---|---|---|---|---|---|
| Resolution | 16-bit | ||||
| Sampling Rate | 500kSPS | ||||
| Input Channels | 4 (fully differential, grouped into 2 pairs) | ||||
| Throughput Time per Channel | 2μs | ||||
| Total Throughput Time for Four Channels | 4μs | ||||
| Power Consumption | 150mW | 200mW | BVDD = 3V or 5V | ||
| Operating Temperature Range | –40°C | +125°C | °C | ||
| Common-Mode Rejection Ratio (CMRR) | 80dB | dB | At 50kHz | ||
| Integral Linearity Error (INL) | ±4 LSB | LSB | |||
| Differential Nonlinearity (DNL) | ±1.5 LSB | LSB | |||
| Bipolar Offset Error (VOS) | ±0.5 mV | ±2.5 mV | mV | TA = –40°C to +125°C | |
| Gain Error (GERR) | ±0.05% | ±0.5% | % |
Key Features
- Dual, 16-bit, 500kSPS Analog-to-Digital (A/D) converter
- Four fully differential input channels grouped into two pairs for simultaneous sampling
- Low power consumption of 150mW
- Internal 2.5V reference with REFIN and REFOUT pins
- Flexible serial interface with high-speed data transfer
- Pin compatible with the 12-bit ADS7861
- High common-mode rejection ratio (CMRR) of 80dB at 50kHz
- Sample-and-hold amplifiers with aperture delay time of 3.5ns and aperture jitter of 50ps
- Available in SSOP-24 and QFN-32 (5x5) packages
Applications
- Motor control systems
- Multi-axis positioning systems
- 3-phase power control systems
- Any application requiring simultaneous and precise sampling of multiple analog signals
Q & A
- What is the resolution and sampling rate of the ADS8361?
The ADS8361 has a resolution of 16 bits and a sampling rate of 500kSPS.
- How many input channels does the ADS8361 have?
The ADS8361 has four fully differential input channels, grouped into two pairs.
- What is the power consumption of the ADS8361?
The power consumption of the ADS8361 is 150mW.
- What is the operating temperature range of the ADS8361?
The operating temperature range of the ADS8361 is –40°C to +125°C.
- Does the ADS8361 have an internal reference voltage?
Yes, the ADS8361 has an internal 2.5V reference voltage.
- What is the common-mode rejection ratio (CMRR) of the ADS8361?
The CMRR of the ADS8361 is 80dB at 50kHz.
- How many clock cycles are required for each 16-bit conversion?
A minimum of 20 clock cycles are required for each 16-bit conversion.
- What are the typical methods of driving the analog input of the ADS8361?
The analog input can be driven in either single-ended or differential configurations.
- What is the aperture delay time and aperture jitter of the sample-and-hold amplifiers?
The aperture delay time is 3.5ns, and the aperture jitter is 50ps.
- In what packages is the ADS8361 available?
The ADS8361 is available in SSOP-24 and QFN-32 (5x5) packages.
