Overview

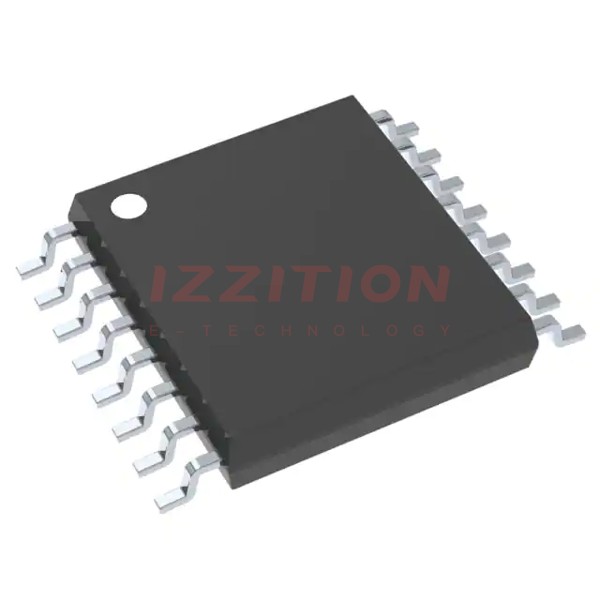

The ADS8328IBPWG4 is a low-power, 16-bit analog-to-digital converter (ADC) produced by Texas Instruments. This device is part of the ADS8328 family and is designed for high-speed and low-power applications. It features a 16-bit capacitor-based successive approximation register (SAR) ADC with inherent sample and hold, and it includes a 2-to-1 input multiplexer (MUX) with programmable TAG bit output. The ADS8328 is available in 16-lead TSSOP or 4×4 QFN packages and is fully specified for operation over the industrial temperature range of –40°C to +85°C.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Analog Supply Voltage | 2.7 to 5.5 | V |
| Sampling Rate | 500 kHz | |
| Resolution | 16 Bits | |
| Integral Linearity (INL) | ±1.5 LSB (Typ), ±2 LSB (Max) | LSB |
| Differential Linearity (DNL) | ±0.6 LSB (Typ), ±1 LSB (Max) | LSB |
| Offset Error | ±0.5 mV (Max at 2.7 V), ±1 mV (Max at 5 V) | mV |
| Signal-to-Noise Ratio (SNR) | 91 dB at fI = 10 kHz | dB |
| Spurious Free Dynamic Range (SFDR) | 100 dB at fI = 10 kHz | dB |
| Total Harmonic Distortion (THD) | –96 dB at fI = 10 kHz | dB |
| Operating Temperature Range | –40 to +85 | °C |
| Package Type | 16-Pin TSSOP or 4×4 QFN | |
| Power Consumption | 10.6 mW (500 kHz, +VA = 2.7 V, +VBD = 1.8 V) | mW |
Key Features
- Low power consumption: 10.6 mW at 500 kHz with +VA = 2.7 V and +VBD = 1.8 V
- Excellent DC performance: ±1.5 LSB Typ, ±2 LSB Max INL, ±0.6 LSB Typ, ±1 LSB Max DNL
- Excellent AC performance: 91 dB SNR, 100 dB SFDR, –96 dB THD at fI = 10 kHz
- Built-in conversion clock (CCLK) and SPI/DSP compatible serial interface with SCLK up to 50 MHz
- Comprehensive power-down modes: Deep Power-Down, Nap Power-Down, Auto Nap Power-Down
- Unipolar input range: 0 V to VREF
- Software reset and global CONVST (independent of CS)
- Programmable status/polarity EOC/INT and TAG bit output
- Multi-chip daisy chain mode and auto/manual channel select mode
Applications
- Communications
- Transducer Interface
- Medical Instruments
- Magnetometers
- Industrial Process Control
- Data Acquisition Systems
- Automatic Test Equipment
Q & A
- What is the sampling rate of the ADS8328IBPWG4?
The sampling rate of the ADS8328IBPWG4 is 500 kHz.
- What is the resolution of the ADS8328IBPWG4?
The resolution of the ADS8328IBPWG4 is 16 bits.
- What are the power-down modes available in the ADS8328IBPWG4?
The ADS8328IBPWG4 features Deep Power-Down, Nap Power-Down, and Auto Nap Power-Down modes.
- What is the operating temperature range of the ADS8328IBPWG4?
The operating temperature range is –40°C to +85°C.
- What are the package options for the ADS8328IBPWG4?
The ADS8328IBPWG4 is available in 16-Pin TSSOP or 4×4 QFN packages.
- What is the typical power consumption of the ADS8328IBPWG4 at 500 kHz?
The typical power consumption is 10.6 mW at 500 kHz with +VA = 2.7 V and +VBD = 1.8 V.
- Does the ADS8328IBPWG4 support multi-chip daisy chain mode?
- What is the input range of the ADS8328IBPWG4?
The input range is unipolar from 0 V to VREF.
- Is the ADS8328IBPWG4 compatible with SPI and DSP interfaces?
- Can the ADS8328IBPWG4 be reset via software?
