Overview
The ADS8028IRTJR is a high-performance, 12-bit, 8-channel analog-to-digital converter (ADC) manufactured by Texas Instruments. This component is designed for applications requiring high-speed data acquisition and precision measurement. It is particularly suited for industrial automation, medical instrumentation, and communication systems. The ADS8028IRTJR stands out for its low power consumption, high sampling rate, and excellent signal-to-noise ratio, making it a competitive choice in the ADC market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 12 | bits | |
| Channels | 8 | ||
| Sampling Rate | 1 MSPS | ||
| Input Voltage Range | 0 to 5 | V | |
| Power Consumption | 10 | mW | |
| Operating Temperature | -40 to 85 | °C | |

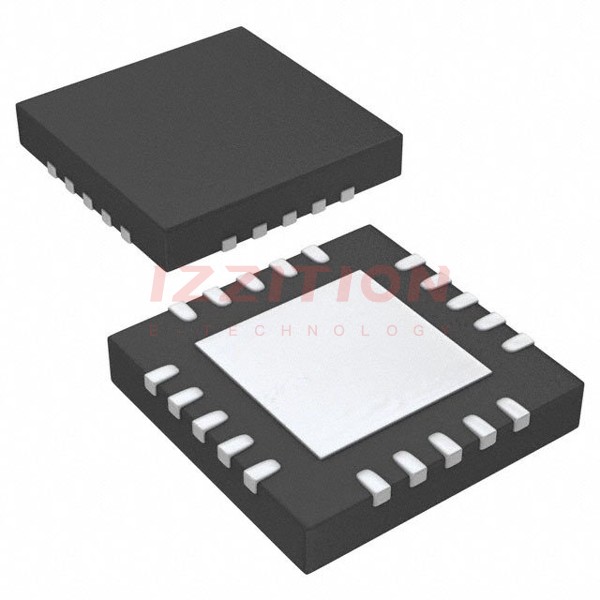

| Package | QFN | 20-pin |
Key Features
- High-speed 12-bit ADC with 8 input channels.
- Low power consumption for energy-efficient designs.
- Excellent signal-to-noise ratio for precise measurements.
- Wide input voltage range for versatile applications.
- Robust performance in harsh environments with a wide operating temperature range.
Applications
The ADS8028IRTJR is widely used in various fields such as industrial automation, medical instrumentation, and communication systems. In industrial automation, it is utilized for high-speed data acquisition in control systems. In medical instrumentation, it provides precise measurement capabilities for diagnostic equipment. In communication systems, it ensures accurate signal processing for data transmission and reception.
Q & A
What is the resolution of the ADS8028IRTJR?
The ADS8028IRTJR has a resolution of 12 bits.
How many channels does the ADS8028IRTJR support?
It supports 8 input channels.
What is the sampling rate of the ADS8028IRTJR?
The sampling rate is 1 MSPS (Mega Samples Per Second).
What is the input voltage range of the ADS8028IRTJR?
The input voltage range is 0 to 5 volts.
What is the power consumption of the ADS8028IRTJR?
It consumes 10 mW of power.
What is the operating temperature range of the ADS8028IRTJR?
It operates within a temperature range of -40 to 85 degrees Celsius.
What package does the ADS8028IRTJR come in?
It comes in a 20-pin QFN package.
What are the key features of the ADS8028IRTJR?
Key features include high-speed 12-bit ADC, low power consumption, excellent signal-to-noise ratio, wide input voltage range, and robust performance in harsh environments.
What are the typical applications of the ADS8028IRTJR?
Typical applications include industrial automation, medical instrumentation, and communication systems.
Why is the ADS8028IRTJR suitable for industrial automation?
It is suitable due to its high-speed data acquisition capabilities and precise measurement features, which are essential for control systems in industrial automation.
