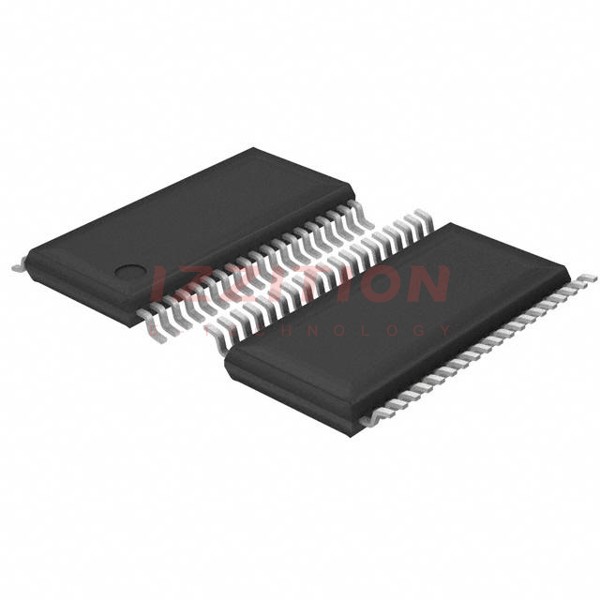

Overview
The ADS7952QDBTRQ1 is a high-performance, multi-channel analog-to-digital converter (ADC) manufactured by Texas Instruments. This device is part of a series that includes 8-bit, 10-bit, and 12-bit resolution ADCs, designed for applications requiring precise monitoring of multiple channels. It features a capacitor-based successive approximation register (SAR) ADC with inherent sample-and-hold functionality. The ADS7952QDBTRQ1 operates within a wide analog supply voltage range of 2.7V to 5.25V, making it suitable for battery-powered and isolated power supply applications. Its low power consumption and robust performance make it ideal for industrial, automotive, and consumer electronics applications.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 12-bit | ||
| Channels | 8 | ||
| Interface Type | SPI | ||
| Analog Supply Voltage | 2.7 to 5.25 | V | |
| Digital Supply Voltage | 1.7 to 5.25 | V | |
| Operating Temperature | -40 to +125 | °C | |
| Power Consumption | Low | Ideal for battery-powered applications | |
| Package | 30-pin TSSOP |
Key Features
- Multi-channel 12-bit resolution for precise data acquisition.
- Low power consumption, suitable for battery and isolated power applications.
- Wide analog supply voltage range from 2.7V to 5.25V.
- Inherent sample-and-hold functionality for accurate signal capture.
- SPI interface for easy integration with microcontrollers and processors.
Applications
The ADS7952QDBTRQ1 is widely used in various applications including industrial automation, automotive systems, and consumer electronics. In industrial settings, it is utilized for monitoring and controlling multiple sensors and actuators. In automotive applications, it plays a crucial role in battery management systems and sensor interfacing. Additionally, its low power consumption and high precision make it suitable for portable and battery-powered devices in consumer electronics.
Q & A
1. What is the resolution of the ADS7952QDBTRQ1?
The ADS7952QDBTRQ1 has a resolution of 12 bits.
2. How many channels does the ADS7952QDBTRQ1 support?
It supports 8 channels.
3. What is the operating voltage range of the ADS7952QDBTRQ1?
The operating voltage range is from 2.7V to 5.25V.
4. Is the ADS7952QDBTRQ1 suitable for battery-powered applications?
Yes, its low power consumption makes it ideal for battery-powered applications.
5. What type of interface does the ADS7952QDBTRQ1 use?
It uses an SPI interface.
6. What is the package type of the ADS7952QDBTRQ1?
It comes in a 30-pin TSSOP package.
7. Can the ADS7952QDBTRQ1 operate in extreme temperatures?
Yes, it can operate from -40°C to +125°C.
8. What are the typical applications of the ADS7952QDBTRQ1?
Typical applications include industrial automation, automotive systems, and consumer electronics.
9. Does the ADS7952QDBTRQ1 have sample-and-hold functionality?
Yes, it features inherent sample-and-hold functionality.
10. What is the power consumption of the ADS7952QDBTRQ1?
The ADS7952QDBTRQ1 has low power consumption, making it suitable for energy-efficient designs.
