ADS7951SDBTR
  • Share:

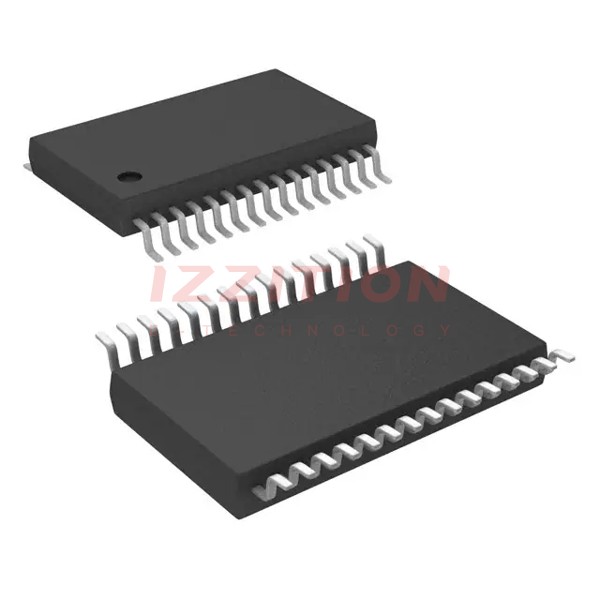

Texas Instruments ADS7951SDBTR

Manufacturer No:
ADS7951SDBTR
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC ADC 12BIT SAR 30TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ADS7951SDBTR is a 12-bit, 1 MSPS (Mega Samples Per Second), 8-channel, single-ended analog-to-digital converter (ADC) produced by Texas Instruments. It is part of the ADS79xx family, which includes pin-compatible multichannel ADCs with resolutions of 12, 10, and 8 bits. This device is particularly suited for applications requiring low power consumption and high-speed data acquisition.

Key Specifications

ParameterValue
Resolution12 bits
Sample Rate1 MSPS
Number of Channels8 channels
Input TypeSingle-ended
Analog Supply Range2.7 V to 5.25 V
I/O Supply Range1.7 V to 5.25 V
Serial Interface20 MHz
Input Ranges0 to VREF and 0 to 2 × VREF
Package Type30-pin TSSOP (DBT)
Operating Temperature Range-40°C to 125°C
Typical Power Dissipation14.5 mW (+VA = 5 V, +VBD = 3 V) at 1 MSPS
Power-Down Current1 μA
Input Bandwidth47 MHz at 3 dB

Key Features

  • Zero latency
  • Auto and manual modes for channel selection
  • Two programmable alarm levels per channel
  • Four individually configurable GPIOs in TSSOP package
  • Wide analog and I/O supply ranges for flexibility
  • Low power consumption, suitable for battery-powered and isolated power-supply applications
  • Glueless interface with most commonly used digital hosts
  • Power-down feature for power saving at lower conversion speeds

Applications

  • PLC/IPC (Programmable Logic Controllers/Industrial PCs)
  • Optical Line Card Monitoring
  • Medical Instrumentation
  • Digital Power Supplies
  • Multi-Channel, General-Purpose Signal Monitoring
  • High-Speed Data Acquisition Systems
  • High-Speed Closed-Loop Systems

Q & A

  1. What is the resolution of the ADS7951SDBTR?
    The ADS7951SDBTR has a resolution of 12 bits.
  2. What is the sample rate of the ADS7951SDBTR?
    The sample rate is 1 MSPS (Mega Samples Per Second).
  3. How many channels does the ADS7951SDBTR have?
    The device has 8 channels.
  4. What is the input type of the ADS7951SDBTR?
    The input type is single-ended.
  5. What is the analog supply range of the ADS7951SDBTR?
    The analog supply range is from 2.7 V to 5.25 V.
  6. What is the I/O supply range of the ADS7951SDBTR?
    The I/O supply range is from 1.7 V to 5.25 V.
  7. What is the typical power dissipation of the ADS7951SDBTR at 1 MSPS?
    The typical power dissipation is 14.5 mW (+VA = 5 V, +VBD = 3 V) at 1 MSPS.
  8. What is the power-down current of the ADS7951SDBTR?
    The power-down current is 1 μA.
  9. What is the input bandwidth of the ADS7951SDBTR at 3 dB?
    The input bandwidth is 47 MHz at 3 dB.
  10. What package type is the ADS7951SDBTR available in?
    The device is available in a 30-pin TSSOP (DBT) package.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):1M
Number of Inputs:8
Input Type:Single Ended
Data Interface:SPI
Configuration:MUX-S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:2.7V ~ 5.25V
Voltage - Supply, Digital:1.7V ~ 5.25V
Features:-
Operating Temperature:-40°C ~ 125°C
Package / Case:30-TFSOP (0.173", 4.40mm Width)
Supplier Device Package:30-TSSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$4.36
155

Please send RFQ , we will respond immediately.

Same Series
RD15S10H00/AA
RD15S10H00/AA
CONN D-SUB RCPT 15POS CRIMP
DD15S20L0S
DD15S20L0S
CONN D-SUB HD RCPT 15P SLDR CUP
CBC46W4S10G0X/AA
CBC46W4S10G0X/AA
CONN D-SUB RCPT 46POS CRIMP
DD15S2S5WV50/AA
DD15S2S5WV50/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LV3S
DD15S20LV3S
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S2000X
DD26S2000X
CONN D-SUB HD RCPT 26P SLDR CUP
CBC46W4S100E20/AA
CBC46W4S100E20/AA
CONN D-SUB RCPT 46POS CRIMP
CBC9W4S10HE2S/AA
CBC9W4S10HE2S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S2S0T0
DD26S2S0T0
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V50/AA
DD26S200V50/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50V3X
DD26S2S50V3X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S5W0X/AA
DD26S2S5W0X/AA
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number ADS7951SDBTR ADS7958SDBTR ADS7959SDBTR ADS7954SDBTR ADS7955SDBTR ADS7961SDBTR ADS7956SDBTR ADS7952SDBTR ADS7957SDBTR ADS7953SDBTR ADS7950SDBTR ADS7951SBDBTR ADS7951SDBT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active Active Active Active Active Active Active Active Active Active Active
Number of Bits 12 8 8 10 10 8 10 12 10 12 12 12 12
Sampling Rate (Per Second) 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M
Number of Inputs 8 4 8 4 8 16 12 12 16 16 4 8 8
Input Type Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended
Data Interface SPI SPI SPI SPI SPI SPI SPI SPI SPI SPI SPI SPI SPI
Configuration MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1
Number of A/D Converters 1 1 1 1 1 1 1 1 1 1 1 1 1
Architecture SAR SAR SAR SAR SAR SAR SAR SAR SAR SAR SAR SAR SAR
Reference Type External External External External External External External External External External External External External
Voltage - Supply, Analog 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V
Voltage - Supply, Digital 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V
Features - - - - - - - - - - - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Package / Case 30-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width) 38-TFSOP (0.173", 4.40mm Width) 38-TFSOP (0.173", 4.40mm Width) 38-TFSOP (0.173", 4.40mm Width) 38-TFSOP (0.173", 4.40mm Width) 38-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width)
Supplier Device Package 30-TSSOP 30-TSSOP 30-TSSOP 30-TSSOP 30-TSSOP 38-TSSOP 38-TSSOP 38-TSSOP 38-TSSOP 38-TSSOP 30-TSSOP 30-TSSOP 30-TSSOP
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
