ADS7951SBDBT
  • Share:

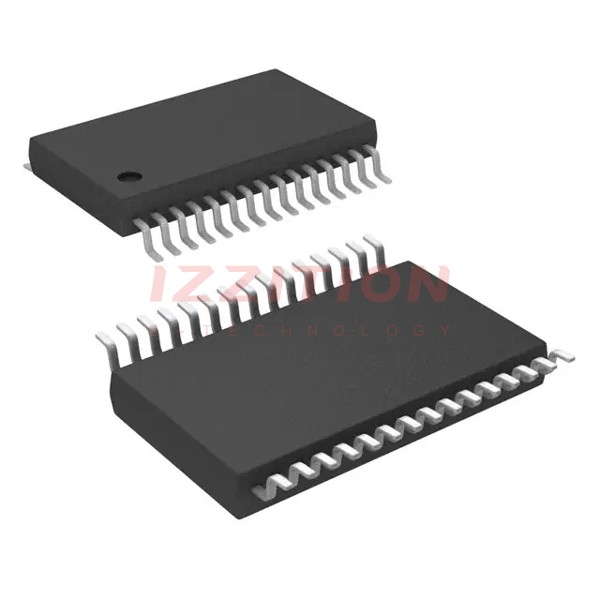

Texas Instruments ADS7951SBDBT

Manufacturer No:
ADS7951SBDBT
Manufacturer:
Texas Instruments
Package:
Tube
Description:
IC ADC 12BIT SAR 30TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ADS7951SBDBT is a 12-bit, 1 MSPS (Mega Samples Per Second), 8-channel, single-ended analog-to-digital converter (ADC) produced by Texas Instruments. This device is part of the ADS79xx family, which includes pin-compatible multichannel ADCs with resolutions of 12, 10, and 8 bits. The ADS7951SBDBT features a capacitor-based SAR (Successive Approximation Register) A/D converter with inherent sample and hold capabilities. It is designed for low power consumption, making it suitable for battery-powered and isolated power-supply applications.

Key Specifications

Parameter Value
Resolution 12 bits
Sample Rate 1 MSPS
Number of Channels 8 channels
Input Type Single-ended
Package 30-pin TSSOP (DBT)
Operating Temperature Range -40°C to 125°C
Analog Supply Range 2.7 V to 5.25 V
I/O Supply Range 1.7 V to 5.25 V
Serial Interface 20 MHz
Input Ranges 0 V to VREF and 0 V to 2 × VREF
Power Dissipation 14.5 mW at 1 MSPS (+VA = 5 V, +VBD = 3 V)
Power-Down Current 1 µA
Input Bandwidth 47 MHz at 3 dB

Key Features

  • 1-MHz sample rate serial devices
  • Zero latency
  • 20-MHz serial interface controlled by CS and SCLK
  • Auto and manual modes for channel selection
  • Two software-selectable unipolar input ranges: 0 V to VREF and 0 V to 2 × VREF
  • Four individually configurable GPIOs in TSSOP package
  • Two programmable alarm levels per channel
  • Low power consumption, suitable for battery-powered applications
  • Power-down feature for power saving at lower conversion speeds

Applications

  • PLC/IPC (Programmable Logic Controllers/Industrial PCs)
  • Optical Line Card Monitoring
  • Medical Instrumentation
  • Digital Power Supplies
  • Multi-Channel, General-Purpose Signal Monitoring
  • High-Speed Data Acquisition Systems
  • High-Speed Closed-Loop Systems

Q & A

  1. What is the resolution of the ADS7951SBDBT?

    The ADS7951SBDBT has a resolution of 12 bits.

  2. What is the sample rate of the ADS7951SBDBT?

    The sample rate is 1 MSPS (Mega Samples Per Second).

  3. How many channels does the ADS7951SBDBT have?

    The device has 8 channels.

  4. What is the input type of the ADS7951SBDBT?

    The input type is single-ended.

  5. What is the package type of the ADS7951SBDBT?

    The package type is 30-pin TSSOP (DBT).

  6. What is the operating temperature range of the ADS7951SBDBT?

    The operating temperature range is -40°C to 125°C.

  7. What are the analog and I/O supply ranges for the ADS7951SBDBT?

    The analog supply range is 2.7 V to 5.25 V, and the I/O supply range is 1.7 V to 5.25 V.

  8. What is the serial interface speed of the ADS7951SBDBT?

    The serial interface speed is 20 MHz.

  9. Does the ADS7951SBDBT support programmable alarm levels?

    Yes, it supports two programmable alarm levels per channel.

  10. What is the typical power dissipation of the ADS7951SBDBT at 1 MSPS?

    The typical power dissipation is 14.5 mW at 1 MSPS (+VA = 5 V, +VBD = 3 V).

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):1M
Number of Inputs:8
Input Type:Single Ended
Data Interface:SPI
Configuration:MUX-S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:2.7V ~ 5.25V
Voltage - Supply, Digital:1.7V ~ 5.25V
Features:-
Operating Temperature:-40°C ~ 125°C
Package / Case:30-TFSOP (0.173", 4.40mm Width)
Supplier Device Package:30-TSSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$8.28
55

Please send RFQ , we will respond immediately.

Same Series
RD15S10HE20/AA
RD15S10HE20/AA
CONN D-SUB RCPT 15POS CRIMP
CBC46W4S100T2X
CBC46W4S100T2X
CONN D-SUB RCPT 46POS CRIMP
CBC9W4S10HE2X/AA
CBC9W4S10HE2X/AA
CONN D-SUB RCPT 9POS CRIMP
DD26M20HT0/AA
DD26M20HT0/AA
CONN D-SUB HD PLUG 26P SLDR CUP
DD26M20HE30/AA
DD26M20HE30/AA
CONN D-SUB HD PLUG 26P SLDR CUP
DD26S10H00/AA
DD26S10H00/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD26S2S5000
DD26S2S5000
CONN D-SUB HD RCPT 26P SLDR CUP
DD15S20JVLS/AA
DD15S20JVLS/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S2S0V50
DD26S2S0V50
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50V50
DD26S2S50V50
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20W0X
DD26S20W0X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20WE2X/AA
DD26S20WE2X/AA
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number ADS7951SBDBT ADS7953SBDBT ADS7951SBDBTR ADS7951SDBT ADS7952SBDBT ADS7950SBDBT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active Active Active Active
Number of Bits 12 12 12 12 12 12
Sampling Rate (Per Second) 1M 1M 1M 1M 1M 1M
Number of Inputs 8 16 8 8 12 4
Input Type Single Ended Single Ended Single Ended Single Ended Single Ended Single Ended
Data Interface SPI SPI SPI SPI SPI SPI
Configuration MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC MUX-S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1 1:1 1:1 1:1
Number of A/D Converters 1 1 1 1 1 1
Architecture SAR SAR SAR SAR SAR SAR
Reference Type External External External External External External
Voltage - Supply, Analog 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V
Voltage - Supply, Digital 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V 1.7V ~ 5.25V
Features - - - - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Package / Case 30-TFSOP (0.173", 4.40mm Width) 38-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width) 38-TFSOP (0.173", 4.40mm Width) 30-TFSOP (0.173", 4.40mm Width)
Supplier Device Package 30-TSSOP 38-TSSOP 30-TSSOP 30-TSSOP 38-TSSOP 30-TSSOP
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
