Overview
The ADS6424IRGCR is a high-performance, quad-channel analog-to-digital converter (ADC) produced by Texas Instruments. This 12-bit ADC operates at sampling rates of up to 105 MSPS, making it suitable for a variety of high-speed data acquisition applications. The device features a serial LVDS interface for data output, enhancing data transfer efficiency and reducing noise.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 12 |
| Sampling Rate | Up to 105 MSPS |
| Channels | Quad-channel |
| Interface | Serial LVDS |

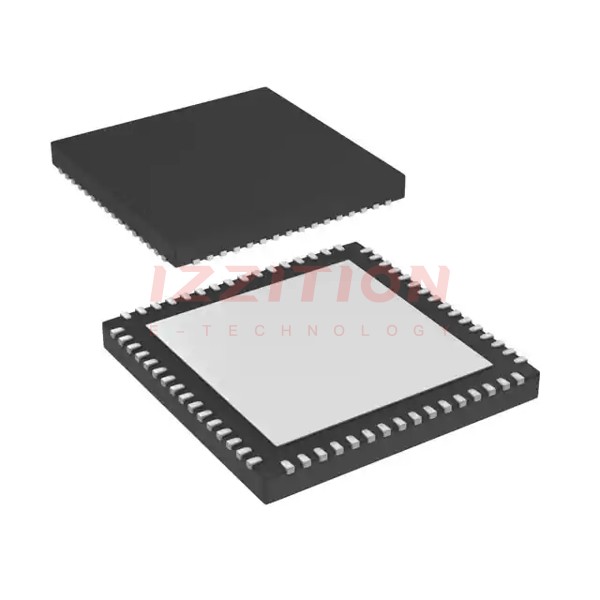

| Package | 64-VFQFN Exposed Pad |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
Key Features
- High-speed operation: Up to 105 MSPS sampling rate.
- Quad-channel configuration: Allows simultaneous conversion of four analog input channels.
- 12-bit resolution: Provides high accuracy and precision in data conversion.
- Serial LVDS interface: Ensures high-speed data transfer with low noise.
- Compact packaging: 64-VFQFN Exposed Pad package for space-efficient designs.
Applications
- High-speed data acquisition systems.
- Medical imaging and diagnostics.
- Radar and surveillance systems.
- Test and measurement equipment.
- Communication systems requiring high-speed ADCs.
Q & A
- What is the maximum sampling rate of the ADS6424IRGCR?
The maximum sampling rate of the ADS6424IRGCR is up to 105 MSPS. - How many channels does the ADS6424IRGCR have?
The ADS6424IRGCR is a quad-channel ADC. - What is the resolution of the ADS6424IRGCR?
The resolution of the ADS6424IRGCR is 12 bits. - What type of interface does the ADS6424IRGCR use for data output?
The ADS6424IRGCR uses a serial LVDS interface for data output. - In what package is the ADS6424IRGCR available?
The ADS6424IRGCR is available in a 64-VFQFN Exposed Pad package. - What is the packaging method for the ADS6424IRGCR?
The ADS6424IRGCR is packaged in Tape & Reel (TR). - What is the current status of the ADS6424IRGCR part?
The ADS6424IRGCR is an active part. - What are some common applications of the ADS6424IRGCR?
Common applications include high-speed data acquisition systems, medical imaging, radar and surveillance systems, test and measurement equipment, and communication systems. - How does the serial LVDS interface benefit the ADS6424IRGCR?
The serial LVDS interface enhances data transfer efficiency and reduces noise. - Where can I find detailed specifications and datasheets for the ADS6424IRGCR?
Detailed specifications and datasheets can be found on the Texas Instruments website, as well as on distributor sites like Mouser and Utsource.
