Overview

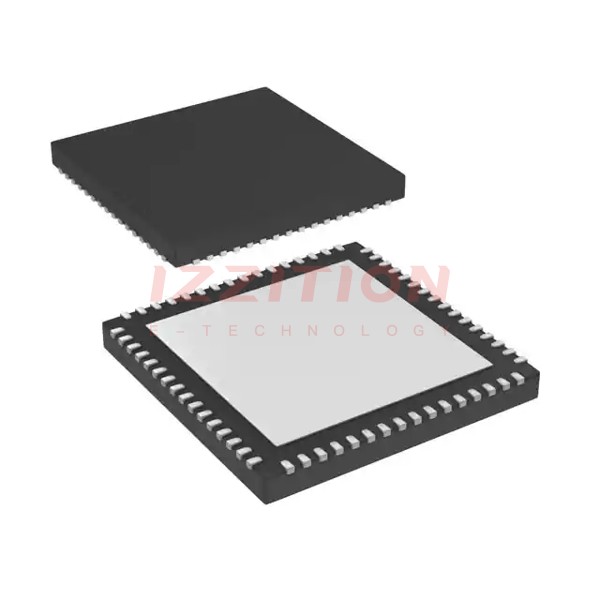

The ADS5483IRGCT is a high-performance, 16-bit analog-to-digital converter (ADC) produced by Texas Instruments. This device operates at sampling rates of up to 135 MSPS and is housed in a 64-pin VQFN (RGC) package. It is designed for applications requiring high-speed data conversion with low power consumption and excellent signal integrity.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 16 bits |
| Sampling Rate | Up to 135 MSPS |
| Input Type | Single-ended, buffered inputs |
| Package Type | 64-VQFN (9x9) |
| Operating Temperature Range | -40°C to 85°C |
| Power Supply | 1.8V (analog), 1.8V (digital) |
| Power Consumption | Approximately 1.2W at 135 MSPS |
Key Features
- High-speed sampling rates up to 135 MSPS
- 16-bit resolution with high signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR)
- Buffered inputs for improved signal integrity
- Low power consumption, approximately 1.2W at 135 MSPS
- Compact 64-pin VQFN package
- Operating temperature range from -40°C to 85°C
Applications
- High-speed data acquisition systems
- Medical imaging and diagnostics
- Radar and surveillance systems
- Test and measurement equipment
- Wireless communication systems
Q & A
- What is the resolution of the ADS5483IRGCT ADC? The ADS5483IRGCT has a 16-bit resolution.
- What are the sampling rates supported by the ADS5483IRGCT? The device supports sampling rates up to 135 MSPS.
- What type of input does the ADS5483IRGCT have? The ADS5483IRGCT has single-ended, buffered inputs.
- What is the package type of the ADS5483IRGCT? The device is housed in a 64-pin VQFN (RGC) package.
- What is the operating temperature range of the ADS5483IRGCT? The operating temperature range is from -40°C to 85°C.
- How much power does the ADS5483IRGCT consume at 135 MSPS? The power consumption is approximately 1.2W at 135 MSPS.
- What are some typical applications of the ADS5483IRGCT? Typical applications include high-speed data acquisition systems, medical imaging, radar and surveillance systems, test and measurement equipment, and wireless communication systems.
- What is the power supply requirement for the ADS5483IRGCT? The device requires a 1.8V power supply for both analog and digital sections.
- Is the ADS5483IRGCT suitable for high-speed signal processing? Yes, the ADS5483IRGCT is designed for high-speed signal processing with its high sampling rates and low power consumption.
- Where can I find detailed specifications for the ADS5483IRGCT? Detailed specifications can be found in the datasheet available on Texas Instruments' official website and other electronic component distributors like Digi-Key.
