Overview
The ADS5407IZAY is a high-performance, dual-channel, 12-bit analog-to-digital converter (ADC) produced by Texas Instruments. This device is designed to ease front-end filter design for wide bandwidth receivers, offering high linearity and low-noise performance. It features a maximum sampling rate of 500 million samples per second (MSPS) and is available in a 196-pin NFBGA (ZAY) package. The ADC is specified over the full industrial temperature range of –40°C to 85°C, making it suitable for a variety of demanding applications.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | 500 MSPS |
| Signal to Noise Ratio (SNR) | 63.5 dB |
| Spurious-free Dynamic Range (SFDR) | 76 dB |
| Input Bandwidth (3dB) | >1.0 GHz |
| Fullscale Input | 1.25 Vpp |
| Data Output Interface | DDR LVDS |

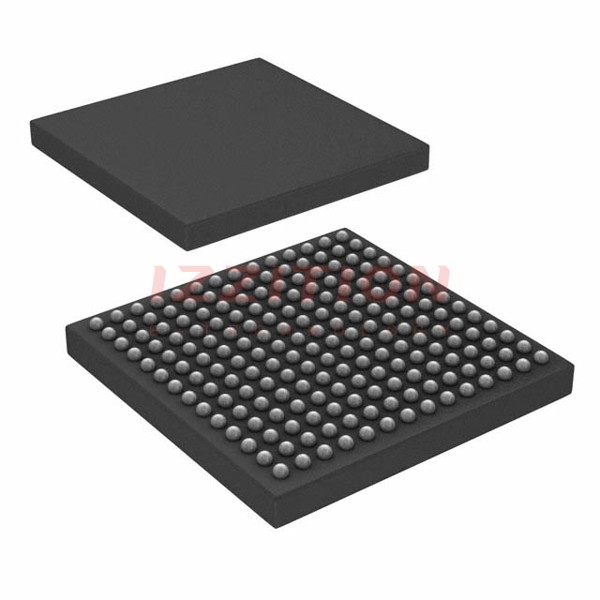

| Package Type | NFBGA (ZAY) - 196 pins |
| Operating Temperature Range | –40°C to 85°C |
Key Features
- Dual-channel operation
- High linearity and low-noise performance
- Analog input buffer with high-impedance input
- Optional 2x decimation with low pass or high pass filter
- Data output interface: DDR LVDS
- 196-pin BGA package (12 × 12mm)
Applications
The ADS5407IZAY is suitable for various high-speed data acquisition and signal processing applications, including:
- Wide bandwidth receivers
- Radar systems
- Medical imaging equipment
- High-speed data acquisition systems
- Telecommunications and wireless infrastructure
Q & A
- What is the resolution of the ADS5407IZAY ADC?
The resolution of the ADS5407IZAY is 12 bits.
- What is the maximum sampling rate of the ADS5407IZAY?
The maximum sampling rate is 500 MSPS.
- What is the signal to noise ratio (SNR) of the ADS5407IZAY?
The SNR is 63.5 dB.
- What is the spurious-free dynamic range (SFDR) of the ADS5407IZAY?
The SFDR is 76 dB.
- What type of package does the ADS5407IZAY come in?
The device is available in a 196-pin NFBGA (ZAY) package.
- What is the operating temperature range of the ADS5407IZAY?
The operating temperature range is –40°C to 85°C.
- Does the ADS5407IZAY have an analog input buffer?
Yes, it has an analog input buffer with high-impedance input.
- What type of data output interface does the ADS5407IZAY use?
The data output interface is DDR LVDS.
- Can the output data of the ADS5407IZAY be decimated?
Yes, the output data can be decimated by two with optional low pass or high pass filter.
- What are some typical applications of the ADS5407IZAY?
Typical applications include wide bandwidth receivers, radar systems, medical imaging equipment, high-speed data acquisition systems, and telecommunications infrastructure.
