Overview
The ADS5231IPAGG4 is a high-performance, dual-channel analog-to-digital converter (ADC) produced by Texas Instruments. This 12-bit pipelined ADC is designed for applications requiring high dynamic range and high-speed conversion. It operates on a single +3.3V supply and is known for its high signal-to-noise ratio (SNR) and robust performance across a wide range of frequencies.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 40M |
| Number of A/D Converters | 2 |
| Operating Temperature | -40°C ~ 85°C |
| Supply Voltage | +3.3V |

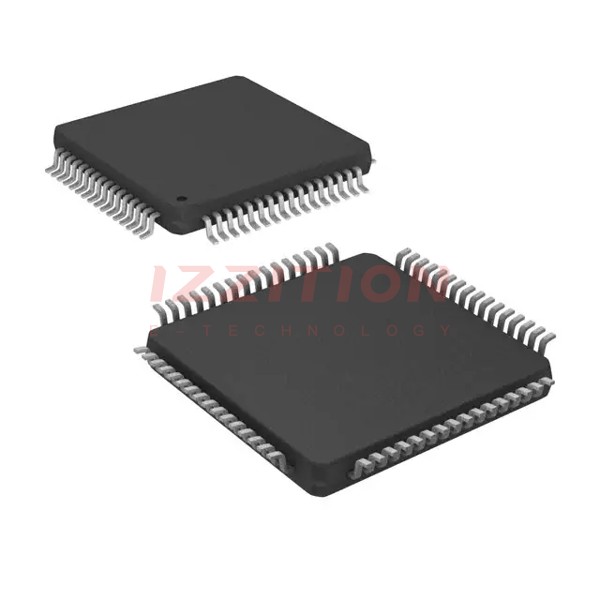

| Package Type | TQFP-64 (10x10) |
| SNR at fIN = 5MHz | 70.7dBFS |
Key Features
- Dual-channel, 12-bit pipelined analog-to-digital converter
- High-speed sampling rate of up to 40 MSPS
- High dynamic range with an SNR of 70.7dBFS at fIN = 5MHz
- Single +3.3V supply operation
- Wide operating temperature range from -40°C to 85°C
- TQFP-64 (10x10) package
Applications
The ADS5231IPAGG4 is suitable for various high-performance applications, including:
- Medical imaging and diagnostics
- Radar and surveillance systems
- High-speed data acquisition systems
- Telecommunications and wireless infrastructure
- Aerospace and defense systems
Q & A
- What is the number of bits in the ADS5231IPAGG4 ADC?
The ADS5231IPAGG4 is a 12-bit analog-to-digital converter. - What is the maximum sampling rate of the ADS5231IPAGG4?
The maximum sampling rate is 40 MSPS. - How many A/D converters are in the ADS5231IPAGG4?
The ADS5231IPAGG4 contains two A/D converters. - What is the operating temperature range of the ADS5231IPAGG4?
The operating temperature range is from -40°C to 85°C. - What is the supply voltage for the ADS5231IPAGG4?
The ADS5231IPAGG4 operates on a single +3.3V supply. - What is the package type of the ADS5231IPAGG4?
The package type is TQFP-64 (10x10). - What is the SNR of the ADS5231IPAGG4 at fIN = 5MHz?
The SNR at fIN = 5MHz is 70.7dBFS. - What are some typical applications of the ADS5231IPAGG4?
Typical applications include medical imaging, radar and surveillance systems, high-speed data acquisition, telecommunications, and aerospace and defense systems. - Is the ADS5231IPAGG4 suitable for high-speed data acquisition?
Yes, the ADS5231IPAGG4 is designed for high-speed data acquisition with a sampling rate of up to 40 MSPS. - Can the ADS5231IPAGG4 operate in harsh environments?
Yes, it can operate in a wide temperature range from -40°C to 85°C.
