Overview

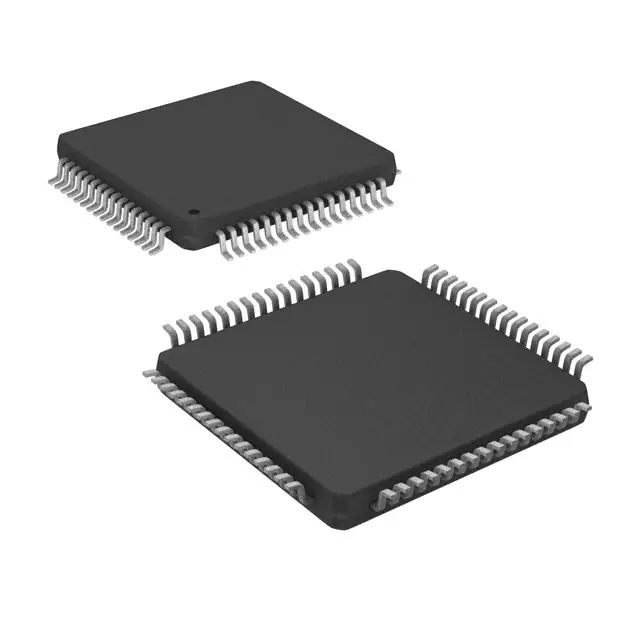

The ADS5231IPAG is a dual-channel, 12-bit, 40-MSPS analog-to-digital converter (ADC) produced by Texas Instruments. This high-speed, high dynamic range ADC features a pipelined architecture and includes a high-bandwidth sample-and-hold amplifier, which provides excellent spurious performance up to and beyond the Nyquist rate. The differential nature of the sample-and-hold amplifier and ADC circuitry minimizes even-order harmonics and offers excellent common-mode noise immunity. The ADS5231IPAG is available in a TQFP-64 package and operates on a single +3.3V supply.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12-bit |
| Sampling Rate | 40 MSPS |
| Supply Voltage | Single +3.3V |
| Power Dissipation (Internal Reference) | 321 mW |
| Power Dissipation (External Reference) | 285 mW |
| Input Range | 1.5V PP to 2V PP |
| Differential Non-Linearity (DNL) | ±0.3 LSB |
| Signal-to-Noise Ratio (SNR) | 70.7 dBFS at fIN = 5 MHz |
| Operating Temperature Range | -40°C to 85°C |
| Package Type | TQFP-64 |
| Number of Pins | 64 |
Key Features
- High-bandwidth sample-and-hold amplifier for excellent spurious performance.
- Differential nature of the sample-and-hold amplifier and ADC circuitry minimizes even-order harmonics and provides excellent common-mode noise immunity.
- Internal or external reference options, allowing for improved tracking in multichannel systems.
- Over-range indicator flag to indicate input signals exceeding the full-scale input range.
- Output enable pin for multiplexing and testing on a PCB.
- Flexible input range: 1.5V PP to 2V PP.
- Low DNL: ±0.3 LSB for excellent differential linearity.
- Digital error correction techniques for demanding imaging applications.
Applications
- Communications IF Processing
- Communications Base Stations
- Test Equipment
- Medical Imaging
- Video Digitizing
- CCD Digitizing
Q & A
- What is the resolution of the ADS5231IPAG ADC?
The ADS5231IPAG has a 12-bit resolution. - What is the sampling rate of the ADS5231IPAG?
The sampling rate is 40 MSPS. - What is the supply voltage for the ADS5231IPAG?
The ADS5231IPAG operates on a single +3.3V supply. - What is the power dissipation of the ADS5231IPAG with an internal reference?
The power dissipation with an internal reference is 321 mW. - What is the input range of the ADS5231IPAG?
The input range is from 1.5V PP to 2V PP. - What is the differential non-linearity (DNL) of the ADS5231IPAG?
The DNL is ±0.3 LSB. - What is the signal-to-noise ratio (SNR) of the ADS5231IPAG at fIN = 5 MHz?
The SNR is 70.7 dBFS at fIN = 5 MHz. - What is the operating temperature range of the ADS5231IPAG?
The operating temperature range is -40°C to 85°C. - What package type is the ADS5231IPAG available in?
The ADS5231IPAG is available in a TQFP-64 package. - Does the ADS5231IPAG support external references?
Yes, the ADS5231IPAG supports both internal and external references.
