Overview
The ADS4125IRGZR is a high-performance, 12-bit analog-to-digital converter (ADC) manufactured by Texas Instruments. This product is designed for applications requiring high-speed data acquisition and precision. It is part of the ADS41xx series, known for its low power consumption and excellent signal-to-noise ratio (SNR). The ADS4125IRGZR is ideal for use in communication infrastructure, medical imaging, and industrial automation systems.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 12 | bits | |
| Sampling Rate | 125 | MSPS | |
| Power Consumption | 285 | mW | at 125 MSPS |
| Input Voltage Range | 2 | Vpp | |
| SNR | 70.5 | dBFS | at 70 MHz |

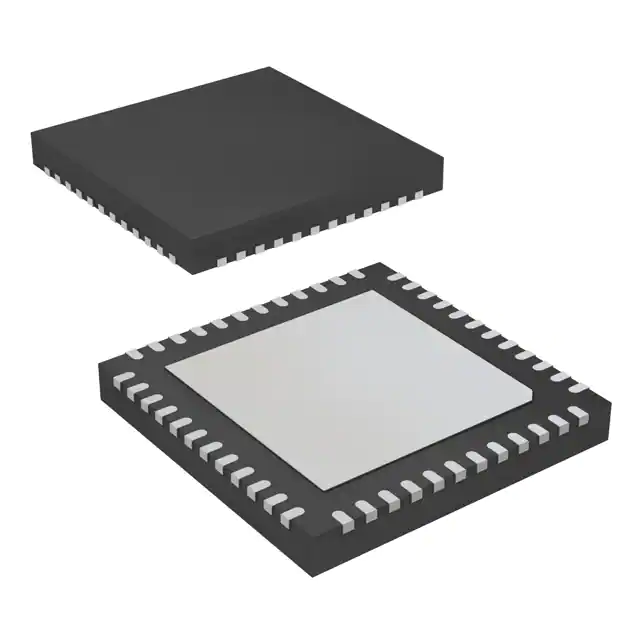

| Package | VQFN-48 |
Key Features
- High-speed sampling up to 125 MSPS
- Low power consumption for energy-efficient designs
- Excellent SNR and linearity for high-precision applications
- Flexible input range to accommodate various signal levels
- Compact VQFN-48 package for space-constrained designs
Applications
The ADS4125IRGZR is widely used in communication infrastructure for high-speed data acquisition, in medical imaging systems for precise signal processing, and in industrial automation for accurate measurement and control. Its high performance and reliability make it a preferred choice in these demanding applications.
Q & A
What is the resolution of the ADS4125IRGZR?
The ADS4125IRGZR has a resolution of 12 bits.
What is the maximum sampling rate of this ADC?
The maximum sampling rate is 125 MSPS.
What is the typical power consumption at full speed?
The typical power consumption is 285 mW at 125 MSPS.
What is the input voltage range?
The input voltage range is 2 Vpp.
What is the SNR at 70 MHz?
The SNR is 70.5 dBFS at 70 MHz.
What package does the ADS4125IRGZR come in?
It comes in a VQFN-48 package.
What are the key features of this ADC?
Key features include high-speed sampling, low power consumption, excellent SNR, flexible input range, and a compact package.
What are typical applications for this ADC?
Typical applications include communication infrastructure, medical imaging, and industrial automation.
Is this ADC suitable for high-precision applications?
Yes, it is designed for high-precision applications with excellent SNR and linearity.
What makes the ADS4125IRGZR stand out in its class?
Its combination of high-speed sampling, low power consumption, and high precision makes it a standout choice for demanding applications.
