Overview

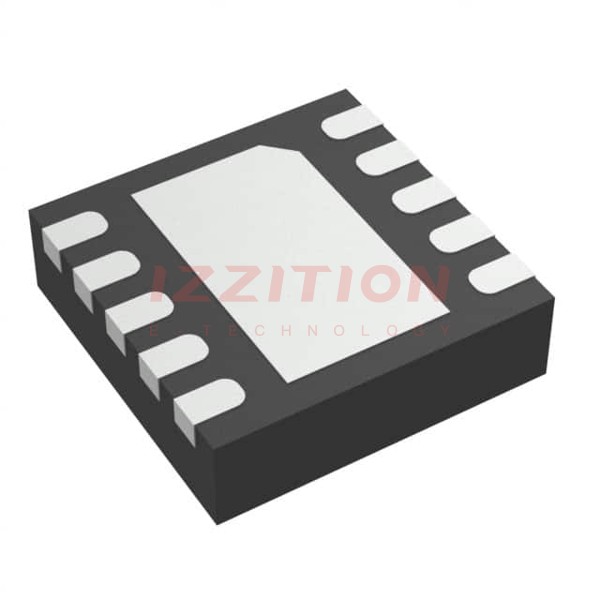

The ADS1112IDRCRG4 is a high-precision, low-power, 16-bit analog-to-digital converter (ADC) produced by Texas Instruments. This product is designed for applications requiring high accuracy and minimal power consumption, making it ideal for portable and battery-powered devices. The ADS1112IDRCRG4 features an integrated programmable gain amplifier (PGA), an internal oscillator, and an I2C interface, providing a compact and efficient solution for signal acquisition. Its market positioning targets industries such as industrial automation, medical instrumentation, and consumer electronics, where precise analog signal conversion is critical. The ADS1112IDRCRG4 stands out for its ultra-low power consumption, high resolution, and ease of integration, making it a competitive choice in the ADC market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 16 | bits | |
| Input Channels | 2 | Differential or single-ended | |
| Data Rate | 15 to 240 | SPS | Programmable |
| Supply Voltage | 2.7 to 5.5 | V | |
| Power Consumption | 150 | µA | During operation |
| Interface | I2C | Compatible with standard and fast modes | |
| Operating Temperature | -40 to 85 | °C | |
| Package | VSON-10 | Compact form factor |
Key Features
- High Resolution: 16-bit ADC ensures precise signal conversion.
- Low Power Consumption: Ideal for battery-powered applications.
- Integrated PGA: Programmable gain amplifier supports a wide range of input signals.
- I2C Interface: Simplifies communication with microcontrollers and other devices.
- Compact Package: VSON-10 package saves board space.
Applications
The ADS1112IDRCRG4 is widely used in applications requiring high-precision analog-to-digital conversion. In industrial automation, it is employed for sensor signal acquisition and process control. In medical instrumentation, it is used for monitoring vital signs and other low-level signals. In consumer electronics, it is ideal for portable devices such as digital multimeters and data loggers. Its low power consumption and compact size make it particularly suitable for battery-powered and space-constrained designs.
Q & A
1. What is the resolution of the ADS1112IDRCRG4?
The ADS1112IDRCRG4 has a resolution of 16 bits.
2. How many input channels does it support?
It supports 2 input channels, which can be configured as differential or single-ended.
3. What is the operating voltage range?
The operating voltage range is 2.7V to 5.5V.
4. Is it suitable for battery-powered devices?
Yes, its low power consumption of 150 µA makes it ideal for battery-powered applications.
5. What is the maximum data rate?
The maximum data rate is 240 samples per second (SPS).
6. Does it include a programmable gain amplifier?
Yes, it includes an integrated programmable gain amplifier (PGA).
7. What interface does it use for communication?
It uses the I2C interface for communication.
8. What is the operating temperature range?
The operating temperature range is -40°C to 85°C.
9. What package does it come in?
It comes in a VSON-10 package.
10. Is it compatible with fast I2C mode?
Yes, it is compatible with both standard and fast I2C modes.
