Overview

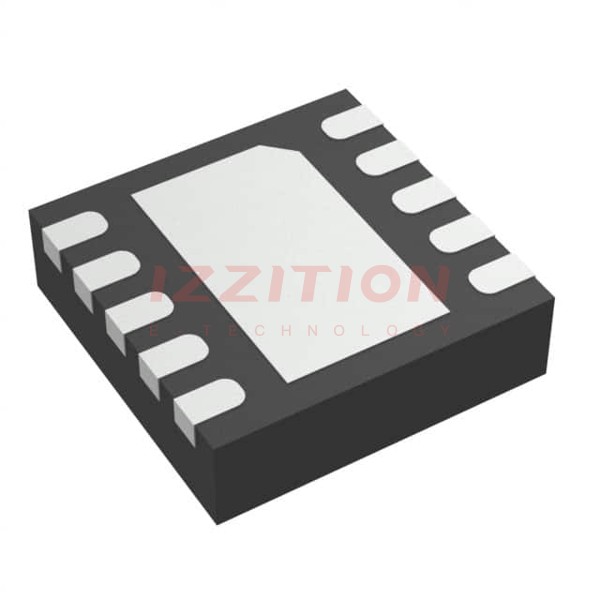

The ADS1112IDRCR is a precision analog-to-digital converter (ADC) manufactured by Texas Instruments. This component is designed for applications requiring high-resolution data acquisition, such as industrial automation, medical instrumentation, and consumer electronics. It features a 16-bit resolution, low power consumption, and an integrated programmable gain amplifier (PGA), making it suitable for a wide range of sensor interfaces and measurement tasks. The ADS1112IDRCR is particularly valued for its compact size, ease of integration, and robust performance in demanding environments.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 16 | bits | |
| Input Channels | 4 | Single-ended or differential | |
| Data Rate | 8 to 860 | SPS | Programmable |
| Supply Voltage | 2.7 to 5.5 | V | |
| Power Consumption | 150 | µA | Typical at 3.3V |
| Operating Temperature | -40 to +125 | °C | |
| Package | VSSOP-10 |
Key Features
- 16-bit resolution for precise measurements
- Programmable gain amplifier (PGA) with gains from 1 to 8
- Low power consumption, ideal for battery-powered applications
- I2C interface for easy communication with microcontrollers
- Internal oscillator, eliminating the need for an external clock
- Compact VSSOP-10 package for space-constrained designs
Applications
The ADS1112IDRCR is widely used in various industries due to its high accuracy and versatility. In industrial automation, it is employed for monitoring and controlling processes. In medical instrumentation, it ensures precise data acquisition for diagnostic devices. Consumer electronics, such as portable measurement tools, benefit from its low power consumption and compact design. Additionally, it is suitable for temperature sensing, pressure monitoring, and other sensor-based applications.
Q & A
1. What is the resolution of the ADS1112IDRCR?
The ADS1112IDRCR has a resolution of 16 bits.
2. How many input channels does it support?
It supports 4 input channels, which can be configured as single-ended or differential.
3. What is the operating voltage range?
The operating voltage range is 2.7V to 5.5V.
4. Is the ADS1112IDRCR suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered applications.
5. What is the maximum data rate?
The maximum data rate is 860 samples per second (SPS).
6. Does it require an external clock?
No, it includes an internal oscillator.
7. What is the package type?
It comes in a VSSOP-10 package.
8. Can it operate in extreme temperatures?
Yes, it operates reliably from -40°C to +125°C.
9. What is the typical power consumption?
The typical power consumption is 150 µA at 3.3V.
10. What interfaces does it support?
It supports the I2C interface for communication with microcontrollers.
