Overview
The ADS1110A1IDBVTG4 is a high-precision, low-power, 16-bit analog-to-digital converter (ADC) manufactured by Texas Instruments. This product is designed for applications requiring high accuracy and minimal power consumption, making it ideal for portable and battery-powered devices. Its market positioning targets industries such as industrial automation, medical devices, and consumer electronics. The ADS1110A1IDBVTG4 stands out for its integrated programmable gain amplifier (PGA), low noise, and small form factor, offering a competitive edge in precision measurement applications.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 16 | bits | |
| Input Channels | 1 | Differential | |
| Sampling Rate | 15 | SPS | Programmable |
| Supply Voltage | 2.7 to 5.5 | V | |
| Power Consumption | 0.24 | mW | At 3V supply |
| Operating Temperature | -40 to +85 | °C | |

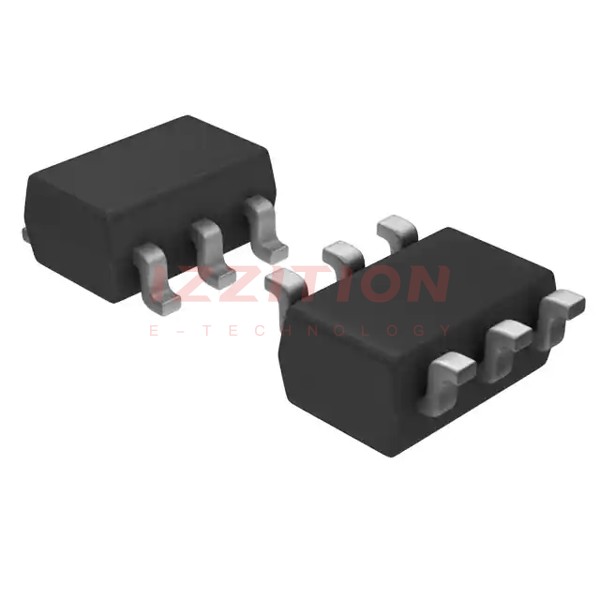

| Package | SOT-23-6 | ||
| Interface | I2C | ||
| Programmable Gain | 1 to 8 | Integrated PGA | |
| Noise Performance | 3.5 | µVrms | At 15 SPS |
Key Features
- High Precision: 16-bit resolution ensures accurate signal conversion.
- Low Power Consumption: Ideal for battery-powered and portable devices.
- Integrated PGA: Programmable gain amplifier enhances flexibility in signal conditioning.
- Compact Design: SOT-23-6 package saves board space.
- I2C Interface: Simplifies communication with microcontrollers.
Applications
The ADS1110A1IDBVTG4 is widely used in applications requiring precise analog signal measurement. Key application areas include:
- Industrial Automation: Sensor signal processing and data acquisition.
- Medical Devices: Vital sign monitoring and diagnostic equipment.
- Consumer Electronics: Portable devices and wearable technology.
- Automotive Electronics: Battery monitoring and sensor interfaces.
Q & A
1. What is the resolution of the ADS1110A1IDBVTG4?
The ADS1110A1IDBVTG4 has a 16-bit resolution.
2. What is the operating voltage range?
It operates from 2.7V to 5.5V.
3. How many input channels does it support?
It supports one differential input channel.
4. What is the sampling rate?
The sampling rate is programmable up to 15 SPS.
5. What is the power consumption?
It consumes 0.24 mW at a 3V supply.
6. What is the package type?
It comes in an SOT-23-6 package.
7. Does it include a programmable gain amplifier?
Yes, it includes an integrated PGA with gain settings from 1 to 8.
8. What is the noise performance?
The noise performance is 3.5 µVrms at 15 SPS.
9. What interface does it use?
It uses an I2C interface for communication.
10. What are the typical applications?
Typical applications include industrial automation, medical devices, consumer electronics, and automotive electronics.
