Overview

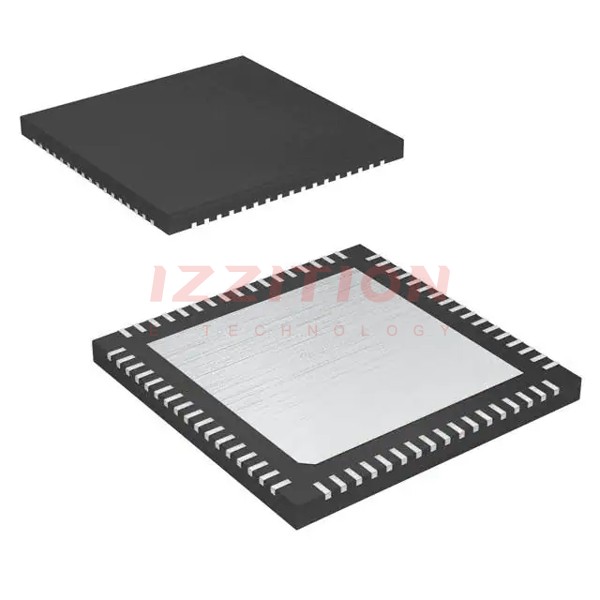

The ADC12J4000NKER is a high-performance, 12-bit analog-to-digital converter (ADC) produced by Texas Instruments. This device is designed for wideband sampling and digital tuning, making it suitable for various high-frequency applications. It features an integrated Digital Down Converter (DDC) that provides digital filtering and down-conversion, enabling the direct sampling of a large block of frequency spectrum at RF frequencies. The ADC operates over an industrial temperature range of -40°C to 85°C and is packaged in a 68-pin VQFN package.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Bits | 12 | |
| Sample Rate | 1000 - 4000 | MSPS |
| Supply Voltage | 1.2 V, 1.9 V | V |
| Power Consumption (Bypass Mode) | 2 W | W |
| Power Consumption (Power Down Mode) | < 50 mW | mW |
| Operating Temperature | -40 to 85 | °C |
| Package Type | 68-pin VQFN | |
| Peak-to-peak Input Voltage Range | 0.725 V | V |
| Noise Floor | -149 dBFS/Hz or -150.8 dBm/Hz | |
| IMD3 | -64 dBc | |
| FPBW (–3 dB) | 3.2 GHz | GHz |
Key Features
- Excellent noise and linearity up to and beyond 3 GHz input frequencies.
- Configurable DDC with decimation factors from 4 to 32.
- Usable output bandwidth of 800 MHz at 4x decimation and 4000 MSPS, and 100 MHz at 32x decimation and 4000 MSPS.
- Bypass mode for full Nyquist output bandwidth.
- Low pin-count JESD204B Subclass 1 interface.
- Automatically optimized output lane count.
- Embedded low latency signal range indication.
- Low power consumption.
Applications
- Wireless Infrastructure
- RF-Sampling Software Defined Radio
- Wideband Microwave Backhaul
- Military Communications
- SIGINT (Signals Intelligence)
- RADAR and LIDAR
- DOCSIS / Cable Infrastructure
- Test and Measurement
Q & A
- What is the maximum sampling rate of the ADC12J4000NKER?
The maximum sampling rate is 4000 MSPS.
- What is the package type of the ADC12J4000NKER?
The device is packaged in a 68-pin VQFN package.
- What is the operating temperature range of the ADC12J4000NKER?
The operating temperature range is -40°C to 85°C.
- Does the ADC12J4000NKER have an integrated Digital Down Converter (DDC)?
- What are the typical power consumption values for the ADC12J4000NKER?
The power consumption is approximately 2 W in bypass mode and less than 50 mW in power down mode.
- What is the noise floor specification of the ADC12J4000NKER?
The noise floor is -149 dBFS/Hz or -150.8 dBm/Hz.
- What is the third-order intermodulation distortion (IMD3) of the ADC12J4000NKER?
The IMD3 is -64 dBc.
- What is the full power bandwidth (FPBW) of the ADC12J4000NKER?
The FPBW is 3.2 GHz.
- What interface does the ADC12J4000NKER use for data output?
The device uses a JESD204B Subclass 1 interface.
- What are some of the key applications of the ADC12J4000NKER?
Key applications include wireless infrastructure, RF-sampling software defined radio, wideband microwave backhaul, and military communications.
