Overview
The ADC12J4000NKE is a high-speed analog-to-digital converter (ADC) produced by Texas Instruments. This device is designed for precision signal conversion in demanding applications, offering a resolution of up to 12 bits and a sampling rate of 4 GSPS. It is particularly suited for high-frequency signal processing and features low power consumption and excellent linearity, ensuring accurate and reliable data conversion.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Manufacturer | Texas Instruments | |
| Resolution | 12 bits | |
| Sampling Rate | 4 GSPS (Giga Samples Per Second) | |
| Supply Voltage | 1.2 V, 1.9 V | V |
| Operating Temperature Range | -40°C to 85°C | °C |

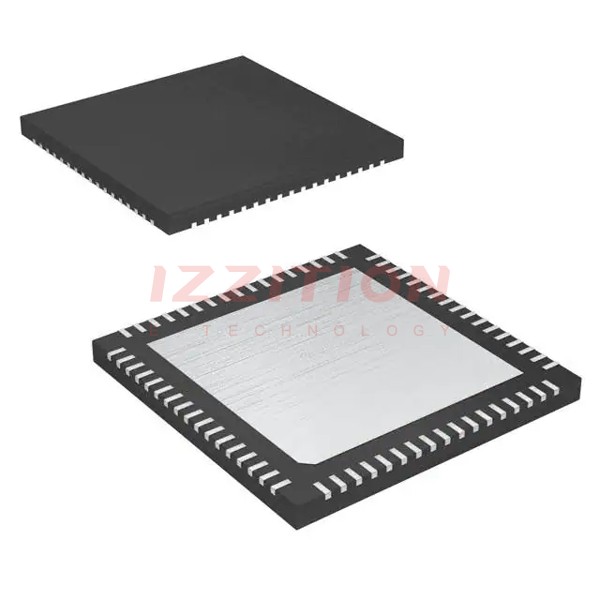

| Package/Case | 68-VQFN Exposed Pad | |
| Number of Channels | 1 | |
| Analog Input Voltage Range | -0.725 V to 0.725 V | V |
| Power Consumption (Bypass Mode) | 2 W | W |
| Power Consumption (Power Down Mode) | < 50 mW | mW |
| Output Format | SERIAL (JESD204B Subclass 1 Interface) |
Key Features
- Excellent noise and linearity up to and beyond 3 GHz input frequencies.
- Configurable Digital Down Converter (DDC) with decimation factors from 4 to 32.
- Usable output bandwidth of 800 MHz at 4x decimation and 4000 MSPS, and 100 MHz at 32x decimation and 4000 MSPS.
- Bypass mode for full Nyquist output bandwidth.
- Low pin-count JESD204B Subclass 1 interface.
- Embedded low latency signal range indication.
- Low power consumption.
Applications
- Radar Systems: Ideal for high-speed data capture and processing in radar applications.
- Wireless Communication: Used in wireless infrastructure for signal analysis and modulation.
- Medical Imaging: Suitable for medical imaging systems requiring high-resolution signal conversion.
- RF-Sampling Software Defined Radio: Enables direct sampling of RF signals.
- Wideband Microwave Backhaul: Supports high-frequency signal processing.
- Military Communications: Used in various military communication systems.
- SIGINT (Signals Intelligence): For signal intelligence applications.
- DOCSIS / Cable Infrastructure: Used in cable infrastructure for high-speed data transmission.
- Test and Measurement: Suitable for various test and measurement applications).
Q & A
- What is the resolution of the ADC12J4000NKE?
The ADC12J4000NKE has a resolution of 12 bits.
- What is the maximum sampling rate of the ADC12J4000NKE?
The maximum sampling rate is 4 GSPS (Giga Samples Per Second).
- What is the operating temperature range of the ADC12J4000NKE?
The operating temperature range is -40°C to 85°C.
- What is the package type of the ADC12J4000NKE?
The package type is 68-VQFN Exposed Pad.
- What are the supply voltages for the ADC12J4000NKE?
The supply voltages are 1.2 V and 1.9 V.
- What is the analog input voltage range for the ADC12J4000NKE?
The analog input voltage range is -0.725 V to 0.725 V.
- What interface does the ADC12J4000NKE use for data output?
The ADC12J4000NKE uses a JESD204B Subclass 1 interface).
- What are some common applications of the ADC12J4000NKE?
Common applications include radar systems, wireless communication, medical imaging, and test and measurement).
- Does the ADC12J4000NKE have integrated digital down-conversion capabilities?
Yes, the ADC12J4000NKE has an integrated Digital Down Converter (DDC)).
- What is the power consumption in bypass mode for the ADC12J4000NKE?
The power consumption in bypass mode is approximately 2 W).
