Overview

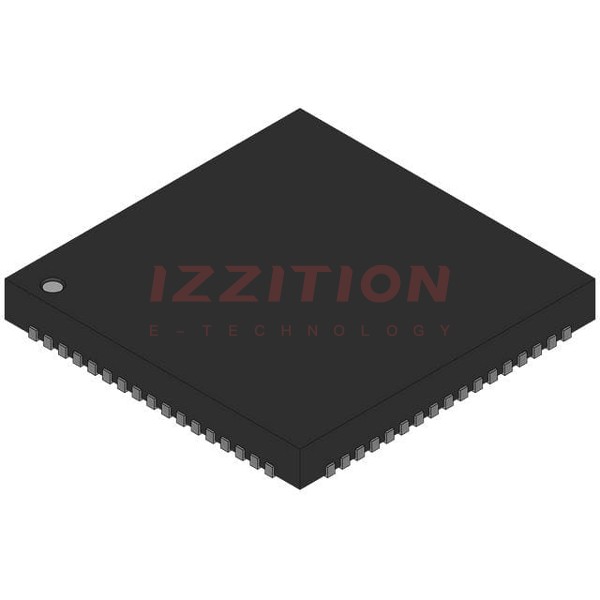

The ADC12J2700NKE10, produced by Texas Instruments, is a high-performance giga-sample analog-to-digital converter (ADC) designed for wideband sampling and digital tuning applications. This device leverages Texas Instruments' advanced ADC technology to sample a large block of frequency spectrum directly at RF frequencies. It features an integrated Digital Down Converter (DDC) that provides digital filtering and down-conversion, making the selected frequency block available on a JESD204B serial interface. The device operates over an industrial temperature range of –40°C to 85°C and is packaged in a 68-pin VQFN package.
Key Specifications
Specification | Value |
---|---|
Max Sampling Rate | 1600 or 2700 MSPS |
Min Sampling Rate | 1000 MSPS |
DDC Output Word Size | 15-Bit Complex (30 bits total) |
Bypass Output Word Size | 12-Bit Offset Binary |
Noise Floor | –147.3 dBFS/Hz (ADC12J2700), –145 dBFS/Hz (ADC12J1600) |
IMD3 | −64 dBc (FIN= 2140 MHz ± 30 MHz at −13 dBFS) |
FPBW (–3 dB) | 3.2 GHz |
Peak NPR | 46 dB |
Supply Voltages | 1.9 V and 1.2 V |
Power Consumption | Bypass (2700 MSPS): 1.8 W, Bypass (1600 MSPS): 1.6 W, Power Down Mode: <50 mW |
Operating Temperature Range | –40°C to 85°C |
Package | 68-pin VQFN (NKE) |
Key Features
- Excellent Noise and Linearity up to and beyond FIN= 3 GHz
- Configurable DDC with decimation factors from 4 to 32 (Complex Baseband Out)
- Bypass Mode for Full Nyquist Output Bandwidth
- Usable Output Bandwidths:
- 540 MHz at 4x Decimation and 2700 MSPS
- 320 MHz at 4x Decimation and 1600 MSPS
- 67.5 MHz at 32x Decimation and 2700 MSPS
- 40 MHz at 32x Decimation and 1600 MSPS
- Low Pin-Count JESD204B Subclass 1 Interface
- Automatically Optimized Output Lane Count
- Embedded Low Latency Signal Range Indication
- Low Power Consumption
Applications
The ADC12J2700NKE10 is suitable for various high-performance applications requiring wideband sampling and digital tuning, such as:
- Radar Systems
- Wireless Communication Systems
- Electronic Warfare Systems
- Test and Measurement Equipment
- High-Speed Data Acquisition Systems
Q & A
- What is the maximum sampling rate of the ADC12J2700NKE10?
The maximum sampling rate is 2700 MSPS or 1600 MSPS.
- What is the noise floor of the ADC12J2700NKE10?
The noise floor is –147.3 dBFS/Hz for the ADC12J2700 and –145 dBFS/Hz for the ADC12J1600.
- What is the operating temperature range of the device?
The device operates over an industrial temperature range of –40°C to 85°C.
- What is the package type and pin count of the ADC12J2700NKE10?
The device is packaged in a 68-pin VQFN (NKE).
- What interface does the ADC12J2700NKE10 use for data output?
The device uses a JESD204B Subclass 1 Interface.
- What are the supply voltages for the ADC12J2700NKE10?
The supply voltages are 1.9 V and 1.2 V.
- What is the power consumption in bypass mode at 2700 MSPS?
The power consumption in bypass mode at 2700 MSPS is 1.8 W.
- Does the ADC12J2700NKE10 have a power-down mode?
Yes, the device has a power-down mode with power consumption of less than 50 mW.
- What is the usable output bandwidth at 4x decimation and 2700 MSPS?
The usable output bandwidth is 540 MHz at 4x decimation and 2700 MSPS.
- Does the ADC12J2700NKE10 support configurable DDC?
Yes, the device supports configurable DDC with decimation factors from 4 to 32.
