Overview

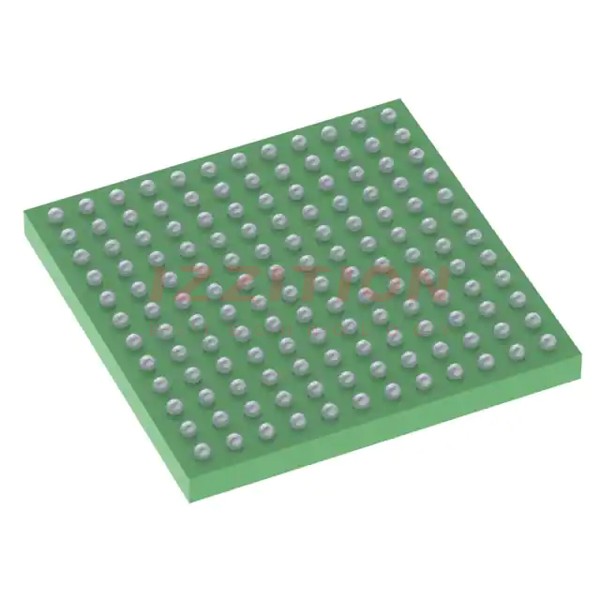

The ADC12DJ3200AAVT, produced by Texas Instruments, is a high-performance, RF-sampling, analog-to-digital converter (ADC) designed to handle a wide range of frequencies. This 12-bit ADC can directly sample input frequencies from DC to above 10 GHz, making it suitable for various high-bandwidth applications. It operates in both single-channel and dual-channel modes, offering flexibility in terms of channel count and Nyquist bandwidth. The device is built for harsh environments, including those with high radiation levels, and features advanced synchronization and digital down-conversion capabilities.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12-bit |
| Sampling Rate (Single-Channel Mode) | Up to 6.4 GSPS |
| Sampling Rate (Dual-Channel Mode) | Up to 3.2 GSPS per channel |
| Noise Floor (No Signal, VFS = 1.0 V PP-DIFF) | Dual-Channel Mode: –151.8 dBFS/Hz, Single-Channel Mode: –154.6 dBFS/Hz |
| Harmonic Distortion (HD2, HD3) | –65 dBc up to 3 GHz |
| Analog Input Bandwidth (–3 dB) | 8.0 GHz |
| Usable Input Frequency Range | >10 GHz |
| Full-Scale Input Voltage (VFS, default) | 0.8 V PP |
| Analog Input Common-Mode (VICM) | 0 V |
| Output Interface | JESD204B subclass-1 compliant, up to 16 lanes, maximum lane rate: 12.8 Gbps |
| Power Consumption | Approximately 3 W |
| Power Supplies | 1.1 V, 1.9 V |
Key Features
- High-Speed Sampling: Up to 6.4 GSPS in single-channel mode and up to 3.2 GSPS per channel in dual-channel mode.
- Wide Input Frequency Range: Directly samples input frequencies from DC to above 10 GHz.
- Buffered Analog Inputs: With an analog input bandwidth of 8.0 GHz and a common-mode voltage of 0 V.
- Advanced Synchronization: Features noiseless aperture delay (TAD) adjustment and automatic SYSREF timing calibration.
- Digital Down-Converters: Integrated DDCs in dual-channel mode for real and complex output decimation.
- High-Speed Output Interface: JESD204B subclass-1 compliant with up to 16 lanes and a maximum lane rate of 12.8 Gbps.
- Radiation Hardness: Total Ionizing Dose (TID) of 300 krad (Si) and Single Event Latchup (SEL) of 120 MeV-cm2/mg.
Applications
- Communications Testers: Supports 802.11ad, 5G, and other high-bandwidth communication standards.
- Satellite Communications (SATCOM): Suitable for satellite communication systems requiring high-speed data conversion.
- Phased Array Radar, SIGINT, and ELINT: Ideal for advanced radar and signal intelligence applications.
- Synthetic Aperture Radar (SAR): Used in SAR systems for high-resolution imaging.
- Time-of-Flight and LIDAR Distance Measurement: Applicable in time-of-flight and LIDAR systems.
- Oscilloscopes and Wideband Digitizers: Suitable for high-bandwidth oscilloscopes and digitizers.
- Microwave Backhaul: Used in microwave backhaul systems for high-speed data transmission.
- RF Sampling Software-Defined Radio (SDR): Ideal for SDR applications requiring direct RF sampling.
- Spectrometry: Used in spectrometry applications for high-resolution signal analysis.
Q & A
- What is the maximum sampling rate of the ADC12DJ3200 in single-channel mode?
The ADC12DJ3200 can sample up to 6.4 GSPS in single-channel mode.
- What is the maximum sampling rate of the ADC12DJ3200 in dual-channel mode?
The ADC12DJ3200 can sample up to 3.2 GSPS per channel in dual-channel mode.
- What is the analog input bandwidth of the ADC12DJ3200?
The analog input bandwidth is 8.0 GHz.
- What is the usable input frequency range of the ADC12DJ3200?
The usable input frequency range exceeds 10 GHz.
- What type of output interface does the ADC12DJ3200 use?
The ADC12DJ3200 uses a JESD204B subclass-1 compliant interface with up to 16 lanes.
- What are the power supply requirements for the ADC12DJ3200?
The power supplies required are 1.1 V and 1.9 V.
- Is the ADC12DJ3200 radiation-hardened?
Yes, the ADC12DJ3200 has a Total Ionizing Dose (TID) of 300 krad (Si) and Single Event Latchup (SEL) of 120 MeV-cm2/mg.
- What are some of the key applications of the ADC12DJ3200?
The ADC12DJ3200 is used in communications testers, satellite communications, phased array radar, synthetic aperture radar, time-of-flight and LIDAR, oscilloscopes, microwave backhaul, RF sampling SDR, and spectrometry.
- Does the ADC12DJ3200 support digital down-conversion?
Yes, the ADC12DJ3200 supports digital down-conversion in dual-channel mode with real and complex output decimation.
- What is the noise floor specification of the ADC12DJ3200?
The noise floor is –151.8 dBFS/Hz in dual-channel mode and –154.6 dBFS/Hz in single-channel mode.
