Overview

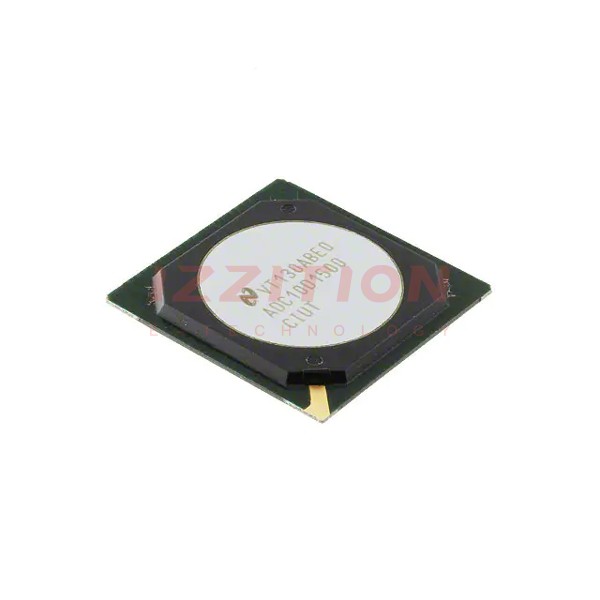

The ADC12D500RFIUT/NOPB is a high-speed, high-resolution analog-to-digital converter (ADC) produced by Texas Instruments. This 12-bit ADC is designed for precise and fast signal digitization in various applications, particularly those requiring high-frequency signal processing. It can directly sample input frequencies up to and above 2.7 GHz, making it ideal for radar systems, communication equipment, medical imaging devices, satellite communication systems, and test and measurement instruments.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | Interleaved: 1.6/1.0 GSPS, Dual: 800/500 MSPS |
| Input Voltage Range | ±1 V |
| Supply Voltage | 1.8 V |
| Operating Temperature Range | -40°C to +85°C |
| Package/Case | 292-BGA (NXA) |
| IMD3 (Fin = 2.7GHz @ -13dBFS) | -63/-61 dBc (typ) |
| IMD3 (Fin = 2.7GHz @ -16dBFS) | -71/-69 dBc (typ) |
| Noise Floor | -152.2/-150.5 dBm/Hz (typ) |
| Noise Power Ratio | 50.4/50.7 dB (typ) |
| Power | 2.50/2.02 W (typ) |
| ENOB (Dual 800/500 MSPS) | 9.5/9.6 Bits (typ) |
| SNR (Dual 800/500 MSPS) | 59.7/59.7 dB (typ) |
| SFDR (Dual 800/500 MSPS) | 71.2/72 dBc (typ) |
| Power per Channel (Dual 800/500 MSPS) | 1.25/1.01 W (typ) |
Key Features
- High-Speed Conversion: Offers high-speed conversion up to 2.7 GHz, ensuring fast signal digitization in various applications.
- Excellent Noise and Linearity: Provides excellent noise and linearity performance, making it suitable for demanding applications.
- Configurable Sampling Rates: Can be configured to either 1.6/1.0 GSPS interleaved or 800/500 MSPS dual ADC.
- New DESCLKIQ Mode: Supports high bandwidth, high sampling rate applications.
- Pin-Compatible with ADC1xD1x00: Ensures compatibility with other ADC models from Texas Instruments.
- AutoSync Feature: Allows for multi-chip synchronization.
- Internally Terminated, Buffered, Differential Analog Inputs: Enhances signal integrity and reduces external component requirements.
- Interleaved Timing Automatic and Manual Skew Adjust: Facilitates precise timing adjustments.
- Test Patterns at Output for System Debug: Aids in system debugging and verification.
- Time Stamp Feature to Capture External Trigger: Allows for precise timing capture of external events.
- Programmable Gain, Offset, and tAD Adjust Feature: Enables flexible signal processing and adjustment.
- 1:1 Non-Demuxed or 1:2 Demuxed LVDS Outputs: Supports various output configurations for different application needs.
Applications
- Radar Systems: Ideal for radar systems due to its high-speed and high-frequency capabilities.
- Communication Equipment: Suitable for 3G/4G wireless base stations, wideband communications, and wideband microwave backhaul.
- Medical Imaging Devices: Used in medical imaging due to its high resolution and excellent noise and linearity performance.
- Satellite Communication Systems: Applicable in satellite communication systems requiring high-speed signal digitization.
- Test and Measurement Instruments: Utilized in test and measurement equipment for precise signal analysis.
- Military Communications: Used in military communication systems for its robust performance and reliability.
Q & A
- Q: What is the operating frequency range of the ADC12D500RFIUT/NOPB?
A: It operates within a frequency range of up to 2.7 GHz, allowing it to handle high-speed signal digitization. - Q: How does the ADC12D500RFIUT/NOPB handle noise and linearity performance?
A: It provides excellent noise and linearity performance, ensuring accurate signal processing and analysis even in noisy environments. - Q: Can the ADC12D500RFIUT/NOPB be used in medical imaging devices?
A: Yes, it is designed to be used in medical imaging devices due to its high-speed conversion and excellent noise and linearity performance. - Q: What are the sampling rate options for the ADC12D500RFIUT/NOPB?
A: It can be configured to either 1.6/1.0 GSPS interleaved or 800/500 MSPS dual ADC. - Q: What is the resolution of the ADC12D500RFIUT/NOPB?
A: The resolution is 12 bits. - Q: What type of package does the ADC12D500RFIUT/NOPB come in?
A: It comes in a 292-BGA (NXA) package. - Q: What is the operating temperature range of the ADC12D500RFIUT/NOPB?
A: The operating temperature range is -40°C to +85°C. - Q: Does the ADC12D500RFIUT/NOPB support multi-chip synchronization?
A: Yes, it features an AutoSync feature for multi-chip synchronization. - Q: What types of output configurations are supported by the ADC12D500RFIUT/NOPB?
A: It supports 1:1 non-demuxed or 1:2 demuxed LVDS outputs. - Q: Is the ADC12D500RFIUT/NOPB compatible with IEEE standards for LVDS outputs?
A: Yes, the LVDS outputs are compatible with IEEE 1596.3-1996 and support programmable common mode voltage.
