Overview

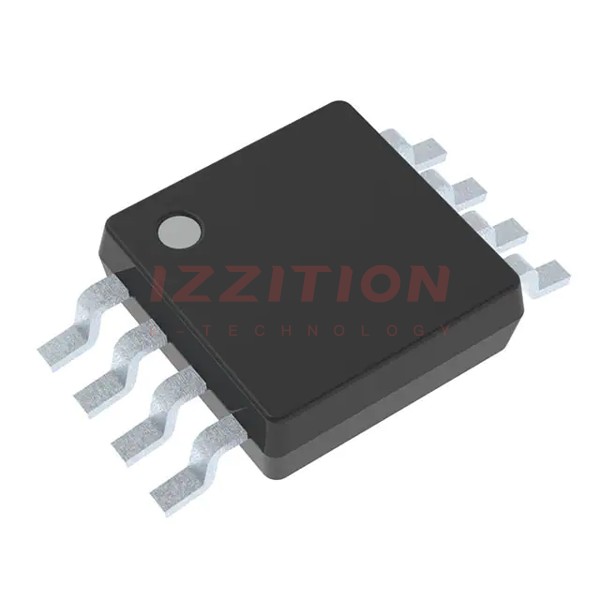

The SN74LVC2G125DCURE4, produced by Texas Instruments, is a dual bus buffer gate with 3-state outputs. This device is designed to operate within a wide voltage range of 1.65 V to 5.5 V, making it versatile for various applications. It features dual line drivers with output-enable (OE) inputs, allowing the outputs to be disabled when the OE input is high. The device is packaged in a VSSOP (8-pin) package and utilizes NanoFree™ package technology, which uses the die as the package, enhancing packaging efficiency.
Key Specifications
| Parameter | Value | Conditions |
|---|---|---|
| Operating Voltage Range | 1.65 V to 5.5 V | |
| Input Voltage Tolerance | Up to 5.5 V | |
| Maximum Propagation Delay (tpd) | 4.3 ns at 3.3 V | |
| Low Power Consumption (ICC) | 10 µA Max | |
| Output Drive Current | ±24 mA at 3.3 V | |
| Output Ground Bounce (VOLP) | < 0.8 V at VCC = 3.3 V, TA = 25°C | |
| Output VOH Undershoot (VOHV) | > 2 V at VCC = 3.3 V, TA = 25°C | |
| Operating Temperature Range | -40°C to 125°C | |
| Package Type | VSSOP (8-pin) | |
| Package Size | 2.30 mm × 2.00 mm |
Key Features
- ESD Protection: Exceeds JESD 22 - 2000-V Human-Body Model, 200-V Machine Model, and 1000-V Charged-Device Model
- Supports 5-V VCC Operation and inputs accepting voltages up to 5.5 V
- Low Power Consumption: 10-µA Max ICC
- High Output Drive: ±24 mA at 3.3 V
- Ioff Feature: Supports live insertion, partial-power-down mode, and back-drive protection
- Down Voltage Translation: Can translate inputs from a max of 5.5 V down to the VCC level
- Latch-Up Performance: Exceeds 100 mA per JESD 78, Class II
- NanoFree™ Package Technology: Uses the die as the package
Applications
- Cable Modem Termination Systems
- High-Speed Data Acquisition and Generation
- Military: Radars and Sonars
- Motor Controls: High-Voltage
- Power Line Communication Modems
- SSDs: Internal or External
- Video Broadcasting and Infrastructure: Scalable Platforms
- Video Broadcasting: IP-Based Multi-Format Transcoders
- Video Communications Systems
Q & A
- What is the operating voltage range of the SN74LVC2G125? The operating voltage range is from 1.65 V to 5.5 V.
- What is the maximum propagation delay (tpd) at 3.3 V? The maximum propagation delay is 4.3 ns at 3.3 V.
- What is the maximum output drive current at 3.3 V? The maximum output drive current is ±24 mA at 3.3 V.
- Does the SN74LVC2G125 support partial-power-down applications? Yes, it supports partial-power-down applications using Ioff circuitry.
- What type of package is the SN74LVC2G125DCURE4 available in? It is available in a VSSOP (8-pin) package.
- What is the operating temperature range of the SN74LVC2G125? The operating temperature range is -40°C to 125°C.
- Can the SN74LVC2G125 translate inputs from a higher voltage to the VCC level? Yes, it can translate inputs from a max of 5.5 V down to the VCC level.
- What is the ESD protection level of the SN74LVC2G125? It exceeds JESD 22 - 2000-V Human-Body Model, 200-V Machine Model, and 1000-V Charged-Device Model.
- How does the Ioff feature benefit the SN74LVC2G125? The Ioff feature supports live insertion, partial-power-down mode, and back-drive protection, preventing damaging current backflow when the device is powered down.
- What are some typical applications of the SN74LVC2G125? Typical applications include cable modem termination systems, high-speed data acquisition, military radars and sonars, and video broadcasting infrastructure.
