Overview

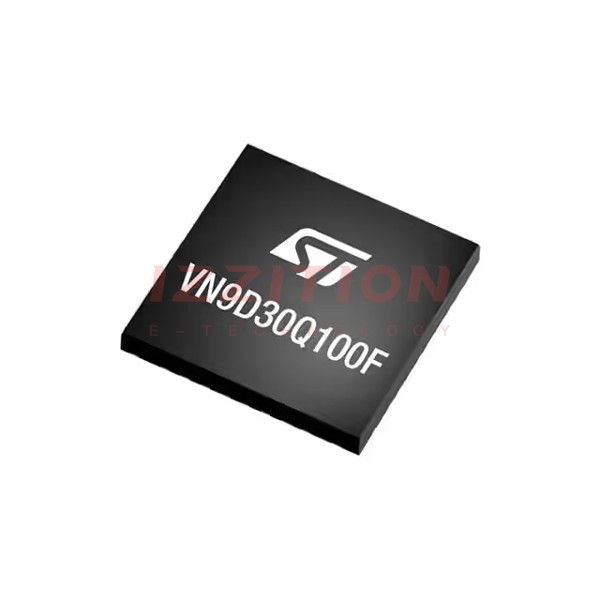

The VN9D30Q100FTR is a power distribution switch and load driver integrated circuit (IC) manufactured by STMicroelectronics. This device is designed using STMicroelectronics' VIPower technology and is intended for driving resistive or inductive loads directly connected to the battery in automotive applications. It is particularly suited for extreme low voltage operation, making it ideal for deep cold cranking applications.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | QFN-32 (6x6) |
| Number of Channels | 6 |
| Current Rating | 6.6A |
| Voltage Range | 4V ~ 29V |
| On-State Resistance | 90mΩ |
| Qualification | AEC-Q100 qualified |
| Compliance | Compliant with LV124, revision 2013 |
Key Features
- AEC-Q100 qualified, ensuring high reliability in automotive applications.
- Extreme low voltage operation, suitable for deep cold cranking applications.
- 24-bit SPI interface for communication and control.
- Designed to drive resistive or inductive loads directly connected to the battery.
- Low on-state resistance of 90mΩ, minimizing power losses.
Applications
The VN9D30Q100FTR is primarily used in automotive systems, particularly in applications requiring robust power distribution and load driving. This includes:
- Automotive battery management systems
- Power distribution in vehicle electrical systems
- Driving resistive or inductive loads such as motors, lamps, and other automotive accessories.
Q & A
- What is the VN9D30Q100FTR used for?
The VN9D30Q100FTR is used as a power distribution switch and load driver in automotive applications.
- What is the package type of the VN9D30Q100FTR?
The VN9D30Q100FTR comes in a QFN-32 (6x6) package.
- What is the current rating of the VN9D30Q100FTR?
The current rating of the VN9D30Q100FTR is 6.6A.
- What is the voltage range of the VN9D30Q100FTR?
The voltage range of the VN9D30Q100FTR is from 4V to 29V.
- Is the VN9D30Q100FTR AEC-Q100 qualified?
Yes, the VN9D30Q100FTR is AEC-Q100 qualified.
- What is the on-state resistance of the VN9D30Q100FTR?
The on-state resistance of the VN9D30Q100FTR is 90mΩ.
- What interface does the VN9D30Q100FTR use for communication?
The VN9D30Q100FTR uses a 24-bit SPI interface for communication and control.
- Is the VN9D30Q100FTR compliant with any specific standards?
Yes, it is compliant with LV124, revision 2013.
- What types of loads can the VN9D30Q100FTR drive?
The VN9D30Q100FTR can drive resistive or inductive loads directly connected to the battery.
- In which sectors is the VN9D30Q100FTR commonly used?
The VN9D30Q100FTR is commonly used in automotive systems.
