Overview
The VN920D-B513TR is a high-performance power distribution switch and driver produced by STMicroelectronics. This device is part of the VN920D-B5 series, designed using STMicroelectronics' VIPower M0-3 technology. It is intended for driving various types of loads with one side connected to ground, making it suitable for a wide range of applications including automotive, industrial, and consumer electronics.
The VN920D-B513TR features advanced protection mechanisms such as current limiting, open load detection, overtemperature protection, and overvoltage protection, ensuring safe and reliable operation even in harsh environmental conditions.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| On Resistance (RDS(on)) | 18 mΩ | mΩ |
| Maximum Output Current (IOUT) | 30 A | A |
| Operating Supply Voltage (VCC) | 5.5 V to 36 V | V |
| Package Type | P2PAK | - |
| Minimum Operating Temperature | -40°C | °C |
| Maximum Operating Temperature | 150°C (TJ) | °C |
| Power Dissipation (Ptot) at TC = 25°C | 96.1 W | W |
| Thermal Resistance Junction-Case (Rthj-case) | 1.3 °C/W | °C/W |
| Storage Temperature | -55°C to 150°C | °C |
Key Features
- CMOS-compatible input
- On-state and off-state open load detection
- Shorted load protection
- Under-voltage and over-voltage shutdown
- Protection against loss of ground
- Very low standby current
- Reverse battery protection
- Active current limitation combined with thermal shutdown and automatic restart

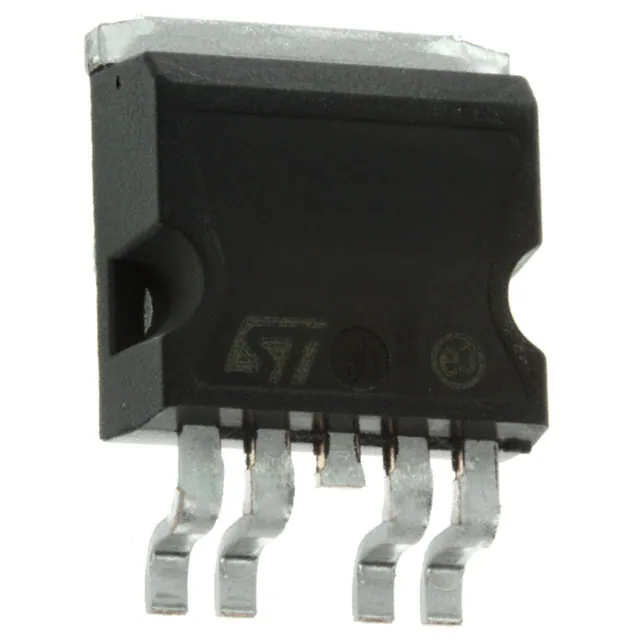

- Compact P²PAK package (4 leads + Tab)
Applications
- Automotive applications
- Industrial control systems
- Consumer electronics
- Power supplies and converters
- Motor drives and robotics
Q & A
- What is the maximum output current of the VN920D-B513TR?
The maximum output current is 30 A.
- What is the operating supply voltage range for the VN920D-B513TR?
The operating supply voltage range is from 5.5 V to 36 V.
- What type of package does the VN920D-B513TR come in?
The VN920D-B513TR comes in a P2PAK package.
- What are the key protection features of the VN920D-B513TR?
The key protection features include current limiting, open load detection, overtemperature protection, and overvoltage protection.
- What is the operating temperature range for the VN920D-B513TR?
The operating temperature range is from -40°C to 150°C (TJ).
- Is the VN920D-B513TR protected against reverse battery conditions?
- What is the thermal resistance junction-case (Rthj-case) for the VN920D-B513TR?
The thermal resistance junction-case (Rthj-case) is 1.3 °C/W.
- What are some common applications for the VN920D-B513TR?
- Does the VN920D-B513TR have protection against loss of ground?
- What is the power dissipation (Ptot) at TC = 25°C for the VN920D-B513TR?
The power dissipation (Ptot) at TC = 25°C is 96.1 W.
