Overview

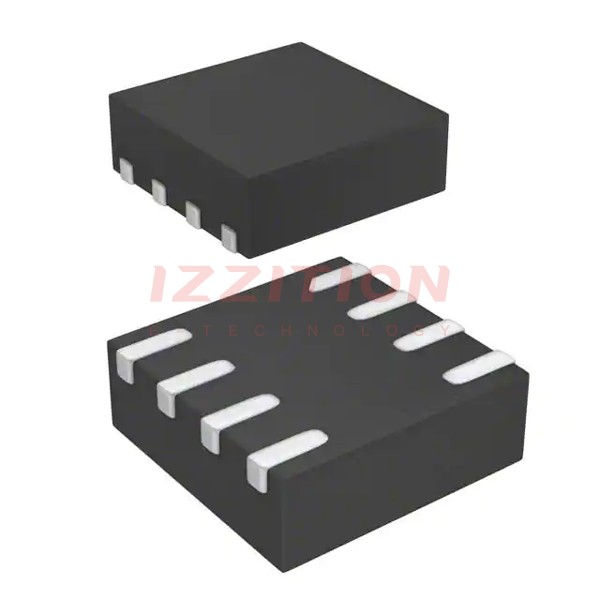

The TSX9292IQ2T operational amplifier, produced by STMicroelectronics, is part of the TSX9291 and TSX9292 series. These op-amps are known for their excellent AC characteristics, including a 16 MHz gain bandwidth and a 27 V/μs slew rate. They are rail-to-rail input and output devices, operating over a wide supply voltage range of 4 V to 16 V. This makes them highly versatile for various applications requiring high performance and stability.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage | 4 to 16 | V |
| Gain Bandwidth Product | 16 MHz (typ at 16 V) | Hz |
| Slew Rate | 27 V/μs | V/μs |
| Input Bias Current | 10 pA (typ) | pA |
| Common Mode Rejection Ratio | 72 dB (typ) | dB |
| Operating Temperature Range | -40°C to +125°C | °C |
| ESD Protection | 4 kV HBM | V |
| Supply Current (per amplifier) | 2.8 mA (typ at 16 V) | mA |
| Total Harmonic Distortion + Noise | 0.0003 % (typ at 1 kHz, Av = +1, RL = 10 kΩ, Vout = 2 Vrms) | % |
Key Features
- Rail-to-rail input and output capability
- Wide supply voltage range: 4 V to 16 V
- High gain bandwidth product: 16 MHz (typ at 16 V)
- Low power consumption: 2.8 mA (typ at 16 V)
- High slew rate: 27 V/μs
- Low input bias current: 10 pA (typ)
- High tolerance to ESD: 4 kV HBM
- Extended temperature range: -40°C to +125°C
- Automotive qualification
Applications
- Communications
- Process control
- Active filtering
- Test equipment
- I/V amplifiers for ADCs
Q & A
- What is the supply voltage range of the TSX9292IQ2T operational amplifier?
The supply voltage range is from 4 V to 16 V.
- What is the gain bandwidth product of the TSX9292IQ2T?
The gain bandwidth product is 16 MHz (typ at 16 V).
- What is the slew rate of the TSX9292IQ2T?
The slew rate is 27 V/μs.
- What is the input bias current of the TSX9292IQ2T?
The input bias current is 10 pA (typ).
- What is the operating temperature range of the TSX9292IQ2T?
The operating temperature range is -40°C to +125°C.
- Does the TSX9292IQ2T have ESD protection?
- What are some common applications of the TSX9292IQ2T?
- Is the TSX9292IQ2T automotive qualified?
- What is the typical supply current per amplifier for the TSX9292IQ2T?
The typical supply current per amplifier is 2.8 mA at 16 V.
- What is the total harmonic distortion + noise (THD+N) of the TSX9292IQ2T?
The THD+N is 0.0003 % (typ at 1 kHz, Av = +1, RL = 10 kΩ, Vout = 2 Vrms).
