Overview

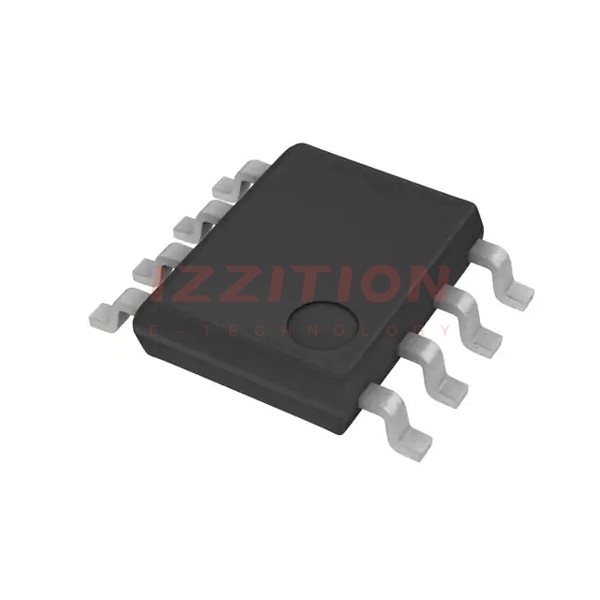

The TSB572IST is a dual operational amplifier produced by STMicroelectronics. It is designed to offer stability and robustness across a wide voltage range, making it an ideal solution for various applications. The amplifier features an extended voltage operating range from 4 V to 36 V and rail-to-rail input/output capabilities, ensuring high performance and versatility.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 2 (Dual) |
| Operating Voltage Range | 4 V to 36 V |
| Gain-Bandwidth Product | 2.5 MHz |
| Supply Current | 380 μA (typical at 36 V) |
| Input Bias Current | 70 nA |
| Input/Output Configuration | Rail-to-rail input/output |
| Package Type | MiniSO-8 |
Key Features
- Extended voltage operating range from 4 V to 36 V, providing flexibility in various applications.
- Rail-to-rail input and output, ensuring maximum signal swing and minimizing distortion.
- High gain-bandwidth product of 2.5 MHz, offering good speed and performance.
- Low supply current of 380 μA (typical at 36 V), making it power-efficient.
- Low input bias current of 70 nA, reducing the impact on the input signal.
Applications
The TSB572IST is suitable for a wide range of applications due to its robust and versatile design. Some common applications include:
- Industrial control systems
- Automotive electronics
- Medical devices
- Audio and video equipment
- General-purpose analog circuits requiring high performance and low power consumption.
Q & A
- What is the operating voltage range of the TSB572IST? The operating voltage range is from 4 V to 36 V.
- How many channels does the TSB572IST have? The TSB572IST is a dual operational amplifier, meaning it has 2 channels.
- What is the gain-bandwidth product of the TSB572IST? The gain-bandwidth product is 2.5 MHz.
- What is the typical supply current of the TSB572IST at 36 V? The typical supply current is 380 μA at 36 V.
- Does the TSB572IST have rail-to-rail input/output capabilities? Yes, it has rail-to-rail input and output capabilities.
- What is the package type of the TSB572IST? The package type is MiniSO-8.
- What is the input bias current of the TSB572IST? The input bias current is 70 nA.
- Is the TSB572IST suitable for automotive applications? Yes, it is suitable for automotive electronics due to its robust design and wide voltage range.
- Can the TSB572IST be used in medical devices? Yes, it can be used in medical devices due to its high performance and low power consumption.
- What are some common applications of the TSB572IST? Common applications include industrial control systems, automotive electronics, medical devices, and general-purpose analog circuits.
