Overview

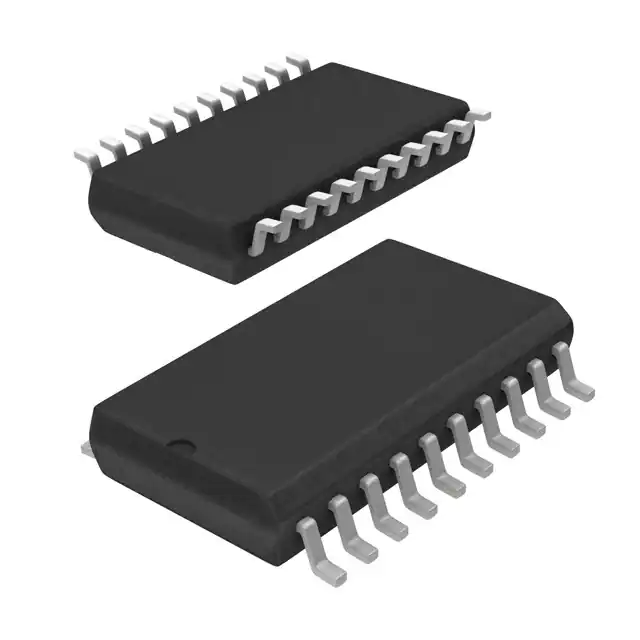

The ST7FLITE19F1M6 is an 8-bit microcontroller manufactured by STMicroelectronics. Although it is now obsolete and no longer in production, it was designed for various embedded system applications. This microcontroller features a compact design and is housed in a 20-pin SOP (Small Outline Package) package. It was widely used in applications requiring low power consumption and simple control logic.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 8-bit |
| Program Memory Size | 4 KB |
| Data RAM Size | 256 x 8 bytes |
| Package Type | SOP-20 (Small Outline Package) |
| Operating Voltage | 2.7V to 5.5V |
| Operating Temperature | -40°C to 85°C |
| ROHS Compliance | Yes |
Key Features
- Low power consumption, making it suitable for battery-powered devices.
- Compact SOP-20 package, ideal for space-constrained applications.
- On-chip reset and supervisor functions for reliable operation.
- Simple and cost-effective solution for basic control tasks.
Applications
The ST7FLITE19F1M6 was used in a variety of applications, including:
- Consumer electronics such as remote controls and appliances.
- Industrial control systems for simple automation tasks.
- Automotive systems for basic control functions.
- Battery-powered devices where low power consumption is critical.
Q & A
- What is the ST7FLITE19F1M6?
The ST7FLITE19F1M6 is an 8-bit microcontroller manufactured by STMicroelectronics.
- What is the program memory size of the ST7FLITE19F1M6?
The program memory size is 4 KB.
- What is the data RAM size of the ST7FLITE19F1M6?
The data RAM size is 256 x 8 bytes.
- In what package is the ST7FLITE19F1M6 available?
The ST7FLITE19F1M6 is available in a SOP-20 (Small Outline Package) package.
- Is the ST7FLITE19F1M6 ROHS compliant?
Yes, the ST7FLITE19F1M6 is ROHS compliant.
- What is the operating voltage range of the ST7FLITE19F1M6?
The operating voltage range is 2.7V to 5.5V.
- What is the operating temperature range of the ST7FLITE19F1M6?
The operating temperature range is -40°C to 85°C.
- Is the ST7FLITE19F1M6 still in production?
No, the ST7FLITE19F1M6 is obsolete and no longer manufactured.
- What are some potential substitutes for the ST7FLITE19F1M6?
Potential substitutes include the STM8S103F2M6 from STMicroelectronics.
- What are some common applications of the ST7FLITE19F1M6?
Common applications include consumer electronics, industrial control systems, automotive systems, and battery-powered devices.
