Overview
The ST7FLIT19BF1M6 is an 8-bit microcontroller produced by STMicroelectronics. Although this component is currently obsolete and no longer manufactured, it remains relevant for legacy systems and maintenance purposes. The microcontroller is part of the ST7 family, known for its robustness and versatility in various applications.
Key Specifications
| Attribute | Value |
|---|---|
| Core | ST7 |
| Program Memory Size | 4 kB |
| Data RAM Size | 256 B |

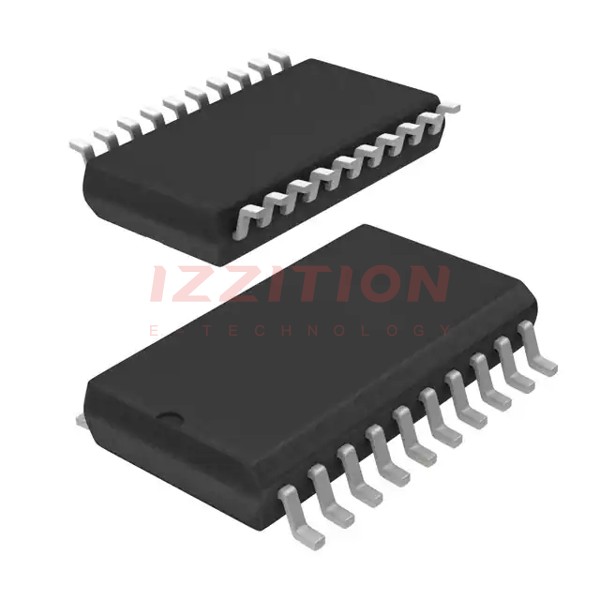

| Package / Case | SOIC-20 |
| Maximum Clock Frequency | 8 MHz |
| ADC Resolution | 10 bit |
| Number of I/Os | 17 |
Key Features
- 8-bit microcontroller with a robust ST7 core.
- Program memory of 4 kB and data RAM of 256 bytes.
- SOIC-20 package, providing a compact form factor.
- Maximum clock frequency of 8 MHz.
- 10-bit ADC resolution for precise analog-to-digital conversion.
- 17 I/O lines for versatile connectivity and control.
Applications
The ST7FLIT19BF1M6 is suitable for a variety of applications, including industrial control systems, consumer electronics, and automotive systems. Its robust design and versatile I/O capabilities make it a reliable choice for embedded systems that require efficient processing and analog-to-digital conversion.
Q & A
- What is the core type of the ST7FLIT19BF1M6 microcontroller?
The core type is ST7. - What is the program memory size of the ST7FLIT19BF1M6?
The program memory size is 4 kB. - What is the data RAM size of the ST7FLIT19BF1M6?
The data RAM size is 256 bytes. - What is the package type of the ST7FLIT19BF1M6?
The package type is SOIC-20. - What is the maximum clock frequency of the ST7FLIT19BF1M6?
The maximum clock frequency is 8 MHz. - What is the ADC resolution of the ST7FLIT19BF1M6?
The ADC resolution is 10 bits. - How many I/O lines does the ST7FLIT19BF1M6 have?
The ST7FLIT19BF1M6 has 17 I/O lines. - Is the ST7FLIT19BF1M6 still in production?
No, the ST7FLIT19BF1M6 is obsolete and no longer manufactured. - Where can I find substitutes for the ST7FLIT19BF1M6?
You can find substitutes through various electronic component distributors such as Digi-Key, Mouser, and others. - What are some common applications of the ST7FLIT19BF1M6?
Common applications include industrial control systems, consumer electronics, and automotive systems.
