Overview
The L99MC6 IC, produced by STMicroelectronics, is a highly flexible monolithic medium current output driver. It features 3 independently self-configuring high-/low-side channels (channels 1 to 3) and 3 dedicated low-side outputs (channels 4 to 6). This device is capable of controlling inductive loads, incandescent bulbs, or LEDs and can be used in various configurations, including half-bridge with crosscurrent protection.
The L99MC6 integrates a 16-bit standard serial peripheral interface (SPI) for controlling all outputs and providing diagnostic information such as normal operation, open-load in off-state, overcurrent, temperature warning, and overtemperature protection.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|

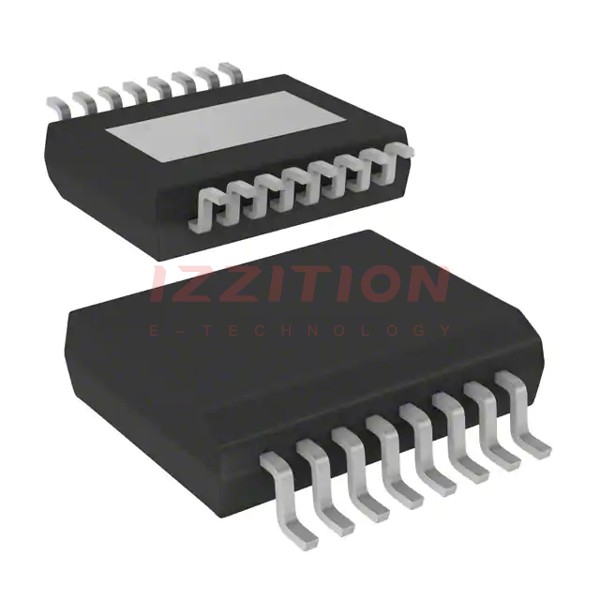

| Package | PowerSSO-16 | |
| Order Codes | L99MC6-LF, L99MC6TR-LF | |
| VCC Supply Voltage | 3.0 V to 5.25 V | V |
| RON (Typical at Tj = 25 °C) | 0.7 Ω | Ω |
| Current Limit per Output | Minimum 0.6 A | A |
| Standby Current Consumption | 5 µA (Typical) | µA |
| Operating Temperature Range | -40 °C to 150 °C | °C |
| HS Switches Crank Voltage | Down to 3 V | V |
Key Features
- 3 independently self-configuring high-/low-side channels (channels 1 to 3)
- 3 dedicated low-side outputs (channels 4 to 6)
- PWM direct mode
- Bulb mode with recovery mode
- LED mode with slew rate control
- Bridge mode with crosscurrent protection
- SPI interface for data communication
- Temperature warning and overtemperature protection
- Short-circuit protection for all outputs
- Configurable open-load detection in off mode
- Internal clamp diodes
- Very low current consumption in standby mode (5 µA typical)
Applications
- Relay driver
- LED driver
- Motor driver (e.g., for mirror adjustment)
- Control of inductive loads and incandescent bulbs
- Half-bridge configurations with crosscurrent protection
- Unipolar stepper motor driver
Q & A
- What is the L99MC6 IC used for?
The L99MC6 IC is used as a medium current output driver for controlling various loads such as inductive loads, incandescent bulbs, LEDs, relays, and motors.
- How many channels does the L99MC6 have and what are their configurations?
The L99MC6 has 6 channels: 3 independently self-configuring high-/low-side channels (channels 1 to 3) and 3 dedicated low-side outputs (channels 4 to 6).
- What is the typical RON value of the L99MC6 at 25 °C?
The typical RON value is 0.7 Ω at Tj = 25 °C.
- What is the current limit for each output of the L99MC6?
The current limit for each output is a minimum of 0.6 A.
- What communication interface does the L99MC6 use?
The L99MC6 uses a 16-bit standard serial peripheral interface (SPI) for data communication.
- What are the protection features of the L99MC6?
The L99MC6 features temperature warning, overtemperature protection, short-circuit protection for all outputs, and configurable open-load detection in off mode.
- What is the standby current consumption of the L99MC6?
The standby current consumption is typically 5 µA.
- Can the L99MC6 operate in half-bridge configuration?
- What is the operating temperature range of the L99MC6?
The operating temperature range is -40 °C to 150 °C.
- What is the crank voltage for HS switches in the L99MC6?
The HS switches can operate down to a crank voltage of 3 V.
