Overview

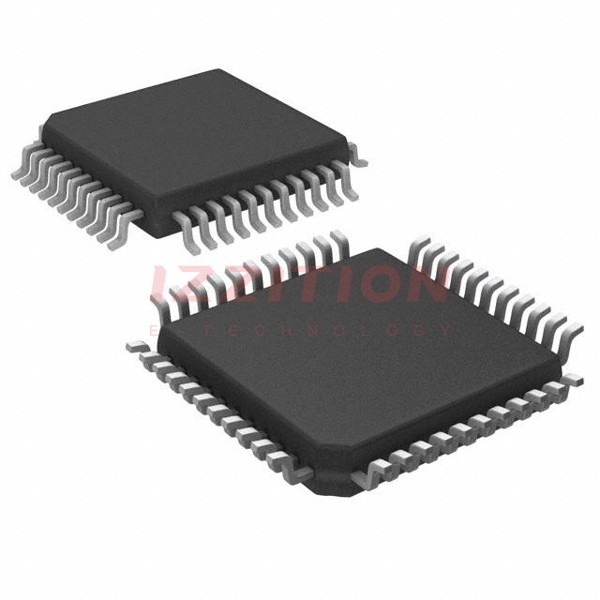

The HI7188IN is a high-performance analog-to-digital converter (ADC) integrated circuit produced by Renesas Electronics America Inc. This 16-bit sigma-delta ADC is designed to provide high accuracy and precision in various industrial and medical applications. The HI7188IN is packaged in a 44-pin QFP (Quad Flat Package) and is known for its robust performance and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 16 bits |
| Converter Type | Sigma-Delta |
| Package/Case Type | 44-QFP |
| Number of Pins | 44 |
| Supply Voltage | Varying, typically 5V or 3.3V (check datasheet for specifics) |
| Operating Temperature Range | Typically -40°C to 85°C (check datasheet for specifics) |
Key Features
- High resolution of 16 bits for precise analog-to-digital conversion.
- Sigma-delta conversion technique for high accuracy and low noise.
- Compact 44-pin QFP package suitable for space-constrained designs.
- Robust performance over a wide operating temperature range.
- Low power consumption, making it suitable for battery-powered devices.
Applications
- Industrial automation and control systems.
- Medical devices such as patient monitoring systems and diagnostic equipment.
- Aerospace and defense applications requiring high reliability and precision.
- Automotive systems, including sensor interfaces and data acquisition.
- Test and measurement equipment.
Q & A
- What is the resolution of the HI7188IN ADC?
The HI7188IN has a resolution of 16 bits. - What type of converter is the HI7188IN?
The HI7188IN is a sigma-delta analog-to-digital converter. - What is the package type of the HI7188IN?
The HI7188IN is packaged in a 44-pin QFP. - What are the typical supply voltages for the HI7188IN?
The typical supply voltages are 5V or 3.3V, but check the datasheet for specific requirements. - What is the operating temperature range of the HI7188IN?
The operating temperature range is typically -40°C to 85°C, but check the datasheet for specifics. - What are some common applications of the HI7188IN?
Common applications include industrial automation, medical devices, aerospace, automotive systems, and test and measurement equipment. - Is the HI7188IN suitable for battery-powered devices?
Yes, the HI7188IN has low power consumption, making it suitable for battery-powered devices. - Where can I find detailed specifications for the HI7188IN?
Detailed specifications can be found in the datasheet available on the Renesas Electronics website or through distributors like Digi-Key, Mouser, etc. - What is the significance of the sigma-delta conversion technique in the HI7188IN?
The sigma-delta conversion technique provides high accuracy and low noise, making it ideal for precision applications. - How many pins does the HI7188IN have?
The HI7188IN has 44 pins.
