Overview

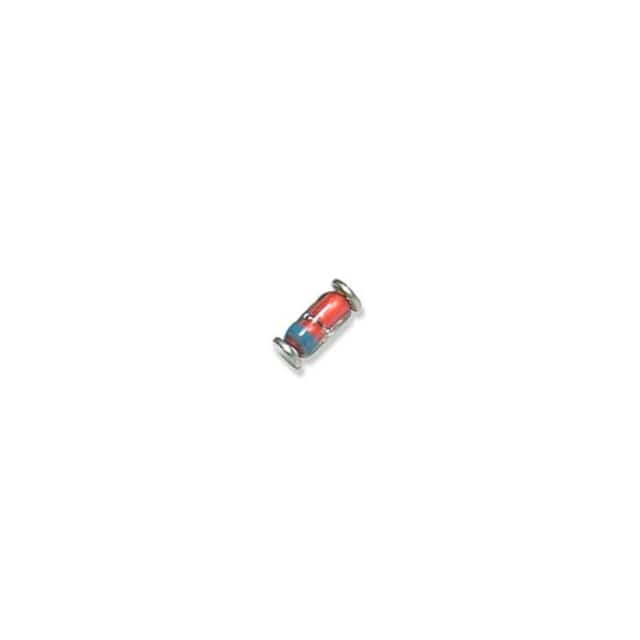

The BZV55C 6.8BSA is a Zener diode manufactured by Rectron USA. This component is designed to provide voltage regulation and is part of the BZV55C series, which offers a range of Zener voltages. The BZV55C 6.8BSA is specifically rated for a nominal Zener voltage of 6.8 volts and is suitable for applications requiring stable voltage reference points.
Key Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Rectron USA |
| Voltage - Zener (Nom) (Vz) | 6.8 V |
| Power - Max | 500 mW |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Impedance (Max) (Zzt) | 25 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 3.5 V |
Key Features
- Voltage Regulation: Provides a stable 6.8V Zener voltage for voltage regulation applications.
- Low Power Consumption: Maximum power dissipation of 500 mW, making it suitable for low-power applications.
- Surface Mount Package: Available in DO-213AC, MINI-MELF, and SOD-80 packages, facilitating easy integration into surface mount designs.
- Low Reverse Leakage Current: Ensures minimal current leakage, enhancing the overall efficiency of the circuit.
Applications
The BZV55C 6.8BSA Zener diode is versatile and can be used in various electronic circuits, including:
- Voltage Regulation: In power supplies, voltage regulators, and DC-DC converters to maintain stable output voltages.
- Overvoltage Protection: To protect electronic circuits from voltage spikes and surges.
- Signal Processing: In audio and signal processing circuits to provide stable reference voltages.
- Automotive and Industrial Electronics: In automotive and industrial applications where reliable voltage regulation is critical.
Q & A
- What is the nominal Zener voltage of the BZV55C 6.8BSA?
The nominal Zener voltage is 6.8 volts. - What is the maximum power dissipation of the BZV55C 6.8BSA?
The maximum power dissipation is 500 mW. - In what packages is the BZV55C 6.8BSA available?
The BZV55C 6.8BSA is available in DO-213AC, MINI-MELF, and SOD-80 packages. - What is the mounting type of the BZV55C 6.8BSA?
The mounting type is surface mount. - What is the maximum impedance (Zzt) of the BZV55C 6.8BSA?
The maximum impedance (Zzt) is 25 Ohms. - What is the reverse leakage current at 3.5V for the BZV55C 6.8BSA?
The reverse leakage current at 3.5V is 2 µA. - Is the BZV55C 6.8BSA RoHS compliant?
Yes, the BZV55C 6.8BSA is RoHS compliant. - What are some common applications of the BZV55C 6.8BSA?
Common applications include voltage regulation, overvoltage protection, signal processing, and use in automotive and industrial electronics. - How do I obtain the datasheet for the BZV55C 6.8BSA?
You can obtain the datasheet from the manufacturer's website or through authorized distributors. - What is the typical shipping time for the BZV55C 6.8BSA?
Shipping times vary by region but typically range from 4 to 7 days depending on the destination.
