Overview

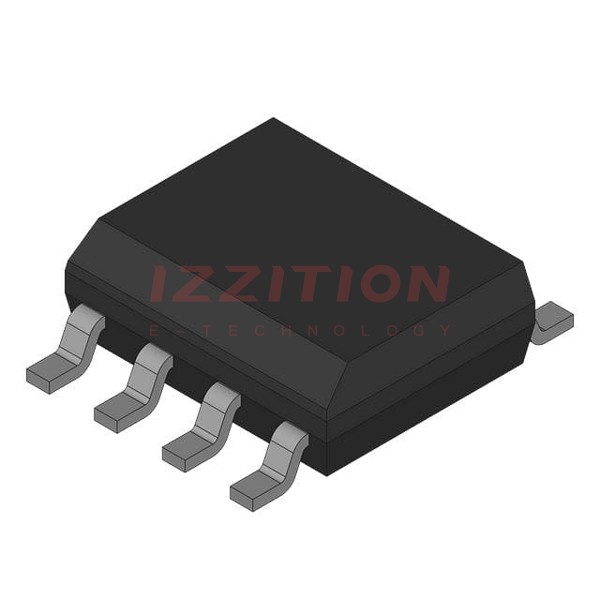

The LMC6035IMX is a dual operational amplifier (op-amp) produced by National Semiconductor, now part of Texas Instruments. This CMOS-based op-amp is designed for applications requiring low power consumption and high precision. It is particularly suitable for battery-powered devices, sensor interfaces, and portable electronics due to its low supply current and rail-to-rail output swing. The LMC6035IMX is packaged in an SOP-8 format, making it compact and easy to integrate into various circuit designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage | 3V to 15V | V | Single or dual supply |
| Input Offset Voltage | 5000 | µV | Max |
| Bandwidth | 1.4 | MHz | Typical |
| Slew Rate | 1.5 | V/µs | Typical |
| Supply Current | 200 | µA | Typical |
| Operating Temperature | -40 to 85 | °C | Industrial range |
| Package | SOP-8 | - | Surface mount |
Key Features
- Low power consumption, ideal for battery-operated devices.
- Rail-to-rail output swing for maximum dynamic range.
- High input impedance and low input bias current.
- Wide supply voltage range from 3V to 15V.
- Compact SOP-8 package for space-constrained applications.
Applications
The LMC6035IMX is widely used in various fields such as portable electronics, sensor signal conditioning, medical devices, and industrial control systems. Its low power consumption and high precision make it ideal for battery-powered applications, while its rail-to-rail output capability ensures accurate signal processing in sensor interfaces. Additionally, its compact package and robust performance make it suitable for use in harsh industrial environments.
Q & A
1. What is the supply voltage range for the LMC6035IMX?
The LMC6035IMX operates with a supply voltage range of 3V to 15V, supporting both single and dual supply configurations.
2. What is the typical bandwidth of the LMC6035IMX?
The typical bandwidth of the LMC6035IMX is 1.4 MHz.
3. Is the LMC6035IMX suitable for battery-powered devices?
Yes, the LMC6035IMX is designed for low power consumption, making it ideal for battery-powered devices.
4. What is the input offset voltage of the LMC6035IMX?
The maximum input offset voltage is 5000 µV.
5. What package does the LMC6035IMX come in?
The LMC6035IMX is available in an SOP-8 package.
6. Can the LMC6035IMX operate in industrial environments?
Yes, the LMC6035IMX has an operating temperature range of -40°C to 85°C, suitable for industrial applications.
7. What is the typical slew rate of the LMC6035IMX?
The typical slew rate is 1.5 V/µs.
8. What is the typical supply current of the LMC6035IMX?
The typical supply current is 200 µA.
9. Does the LMC6035IMX support rail-to-rail output?
Yes, the LMC6035IMX supports rail-to-rail output swing.
10. What are the key applications of the LMC6035IMX?
Key applications include portable electronics, sensor signal conditioning, medical devices, and industrial control systems.
