Overview
The DS90LV048A device, produced by Texas Instruments (originally developed by National Semiconductor), is a quad CMOS flow-through differential line receiver. It is designed for applications requiring ultra-low power dissipation and high data rates. The device supports data rates in excess of 400 Mbps (200 MHz) using Low Voltage Differential Signaling (LVDS) technology. It translates low voltage differential input signals to 3-V CMOS output levels and features a flow-through pinout that simplifies PCB layout.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Switching Rates | > 400 Mbps (200 MHz) | |
| Channel-to-Channel Skew (Typical) | 150 ps | |
| Differential Skew (Typical) | 100 ps | |
| Maximum Propagation Delay | 2.7 ns | |
| Power Supply Design | 3.3 V | |
| Power Consumption (Static at 3.3 V) | 40 mW | |
| Operating Temperature Range | –40°C to +85°C | |

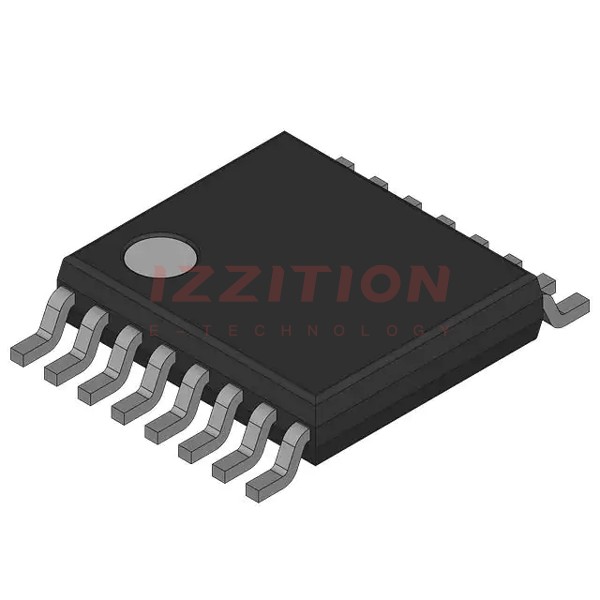

| Package Types | SOIC (16), TSSOP (16) | |
| Differential Input Signal Levels | 350 mV (Typical) |
Key Features
- Flow-through pinout simplifies PCB layout
- High impedance LVDS inputs on power down
- Low power design (40 mW at 3.3-V static)
- Interoperable with existing 5-V LVDS drivers
- Accepts small swing (350 mV typical) differential signal levels
- Supports input failsafe – open, short, and terminated
- Conforms to ANSI/TIA/EIA-644 standard
- TRI-STATE function for output multiplexing
Applications
- Multifunction printers
- LVDS to LVCMOS translation
- High-speed point-to-point interface applications
Q & A
- What is the maximum data rate supported by the DS90LV048A?
The DS90LV048A supports data rates in excess of 400 Mbps (200 MHz).
- What is the typical channel-to-channel skew of the DS90LV048A?
The typical channel-to-channel skew is 150 ps.
- What is the power supply voltage for the DS90LV048A?
The power supply design is 3.3 V.
- Does the DS90LV048A support input failsafe conditions?
Yes, it supports open, short, and terminated input failsafe conditions.
- What are the package types available for the DS90LV048A?
The device is available in SOIC (16) and TSSOP (16) packages.
- Is the DS90LV048A interoperable with existing 5-V LVDS drivers?
Yes, it is interoperable with existing 5-V LVDS drivers.
- What is the typical differential input signal level accepted by the DS90LV048A?
The device accepts differential input signal levels of 350 mV typical.
- Does the DS90LV048A conform to any industry standards?
Yes, it conforms to the ANSI/TIA/EIA-644 standard.
- What is the operating temperature range of the DS90LV048A?
The operating temperature range is –40°C to +85°C.
- Does the DS90LV048A support TRI-STATE outputs?
Yes, it supports TRI-STATE outputs for multiplexing.
