Overview

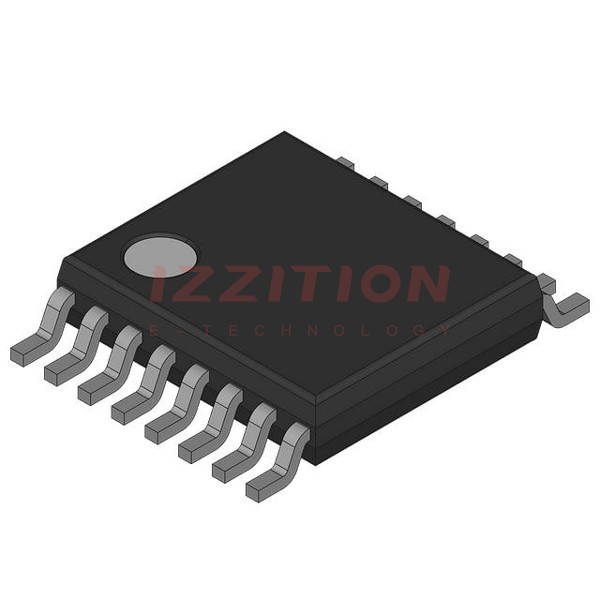

The ADC78H90CIMTX is an 8-channel, 12-bit analog-to-digital converter (ADC) produced by National Semiconductor, now part of Texas Instruments. This component is designed for high-speed and high-precision data acquisition applications. It operates at a sampling rate of 500 kilosamples per second (kSPS) and is housed in a 16-lead TSSOP package, available in tape and reel packaging for ease of use in automated assembly processes.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Channels | 8 | - |
| Resolution | 12-bit | - |
| Sampling Rate | 500 kSPS | kSPS |
| Operating Temperature Range | -40°C to +85°C | °C |
| Package Type | TSSOP-16 | - |
| Packaging | Tape & Reel (TR) | - |
Key Features
- High-speed conversion rate of 500 kSPS
- 8-channel multiplexed input for versatile data acquisition
- 12-bit resolution providing high precision and accuracy
- Operating temperature range from -40°C to +85°C, making it suitable for a wide range of environments
- Compact 16-lead TSSOP package for space-efficient designs
- Available in RoHS-compliant and lead-free versions
Applications
- Data acquisition systems in industrial, medical, and scientific instruments
- Automotive systems requiring high-speed and accurate data conversion
- Aerospace and defense applications where reliability and precision are critical
- Consumer electronics such as audio and video equipment
- Embedded systems and IoT devices requiring efficient and accurate data conversion
Q & A
- What is the sampling rate of the ADC78H90CIMTX?
The sampling rate of the ADC78H90CIMTX is 500 kSPS (kilosamples per second).
- How many channels does the ADC78H90CIMTX have?
The ADC78H90CIMTX has 8 channels.
- What is the resolution of the ADC78H90CIMTX?
The resolution of the ADC78H90CIMTX is 12 bits.
- What is the operating temperature range of the ADC78H90CIMTX?
The operating temperature range of the ADC78H90CIMTX is from -40°C to +85°C.
- What type of package does the ADC78H90CIMTX come in?
The ADC78H90CIMTX comes in a 16-lead TSSOP package.
- Is the ADC78H90CIMTX available in RoHS-compliant versions?
Yes, the ADC78H90CIMTX is available in RoHS-compliant and lead-free versions.
- What is the typical application of the ADC78H90CIMTX?
The ADC78H90CIMTX is typically used in data acquisition systems, industrial, medical, and scientific instruments, as well as in automotive and aerospace applications.
- How is the ADC78H90CIMTX packaged for distribution?
The ADC78H90CIMTX is packaged in tape and reel (TR) for ease of use in automated assembly processes.
- Is there an evaluation board available for the ADC78H90CIMTX?
Yes, an evaluation board (ADC78H90EVAL) is available for the ADC78H90CIMTX.
- Who is the manufacturer of the ADC78H90CIMTX?
The ADC78H90CIMTX is manufactured by National Semiconductor, now part of Texas Instruments.
