Overview

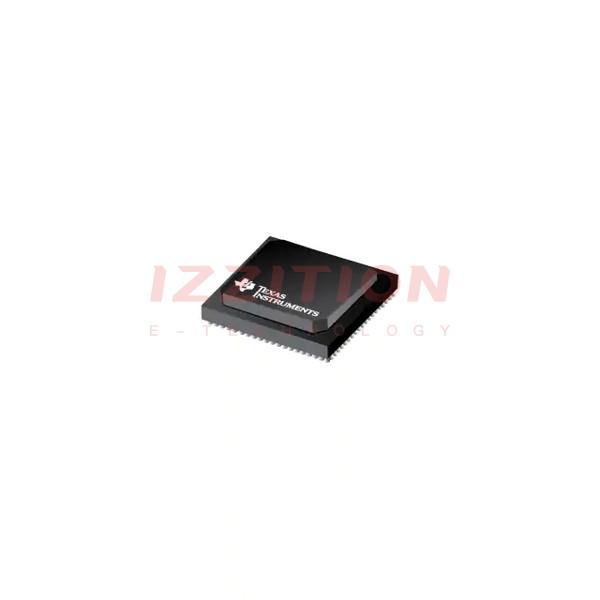

The ADC12D1000CIUT/NOPB is a high-performance, 12-bit analog-to-digital converter (ADC) manufactured by National Semiconductor, now part of Texas Instruments. This component is designed for high-speed data acquisition applications, offering dual channels with sampling rates of up to 1.0 GSPS or 2/3.2 GSPS depending on the configuration. The ADC12D1000CIUT/NOPB is packaged in a 292-BGA (27x27 mm) package, making it suitable for a variety of high-speed data conversion needs.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 12 bits |
| Sampling Rate | Up to 1.0 GSPS or 2/3.2 GSPS |
| Channels | Dual |
| Package Type | 292-BGA (27x27 mm) |
| Operating Temperature | Typically -40°C to 85°C |
| Power Supply | Typically 1.8V and 3.3V |
| RoHS Compliance | Not Compliant |
Key Features
- High-speed sampling rates of up to 1.0 GSPS or 2/3.2 GSPS.
- Dual-channel operation for simultaneous data acquisition.
- 12-bit resolution providing high accuracy in digital conversion.
- Compact 292-BGA package suitable for space-constrained applications.
- Support for fold-interpolation architecture for enhanced performance.
Applications
The ADC12D1000CIUT/NOPB is ideal for various high-speed data acquisition applications, including:
- Medical Imaging: High-resolution imaging in medical devices.
- Radar and Aerospace: High-speed data conversion in radar systems and aerospace applications.
- Test and Measurement: High-precision measurement instruments.
- Communications: High-speed data conversion in communication systems.
Q & A
- What is the maximum sampling rate of the ADC12D1000CIUT/NOPB?
The maximum sampling rate is up to 1.0 GSPS or 2/3.2 GSPS depending on the configuration. - How many channels does the ADC12D1000CIUT/NOPB have?
The ADC has dual channels. - What is the resolution of the ADC12D1000CIUT/NOPB?
The resolution is 12 bits. - What is the package type of the ADC12D1000CIUT/NOPB?
The package type is 292-BGA (27x27 mm). - Is the ADC12D1000CIUT/NOPB RoHS compliant?
No, it is not RoHS compliant. - What are the typical operating temperatures for the ADC12D1000CIUT/NOPB?
The typical operating temperatures are -40°C to 85°C. - What are the power supply requirements for the ADC12D1000CIUT/NOPB?
The power supply requirements are typically 1.8V and 3.3V. - What are some common applications of the ADC12D1000CIUT/NOPB?
Common applications include medical imaging, radar and aerospace, test and measurement, and communications. - Where can I find detailed specifications and datasheets for the ADC12D1000CIUT/NOPB?
Detailed specifications and datasheets can be found on the manufacturer's website or through authorized distributors like DigiPart, Worldway Electronics, and Utmel Electronic. - Is the ADC12D1000CIUT/NOPB still in production?
Yes, the component is in active production status and available for purchase.
