Overview
The ADC12032CIWM/NOPB is a high-performance analog-to-digital converter (ADC) produced by National Semiconductor, now part of Texas Instruments. This component is designed to provide high accuracy and speed in various data acquisition applications. It features a 12-bit resolution and operates at a high sampling rate, making it suitable for demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | Up to 200 kSPS |

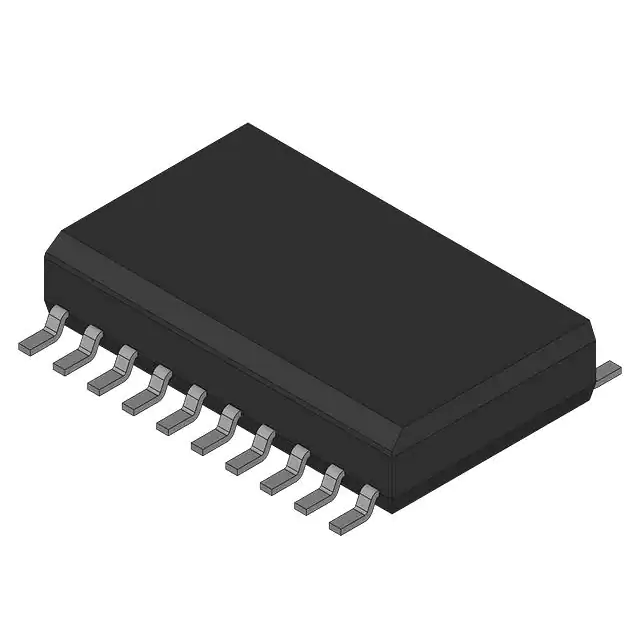

| Package Type | 20-SOIC (0.295", 7.50mm Width) |
| Operating Temperature Range | -40°C to 85°C |
| Supply Voltage | 2.7V to 5.5V |
| Interface | SPI-compatible serial interface |
Key Features
- High-resolution 12-bit ADC for precise data conversion
- High sampling rate of up to 200 kSPS for fast data acquisition
- Low power consumption for energy-efficient applications
- SPI-compatible serial interface for easy communication with microcontrollers
- Operating temperature range from -40°C to 85°C, making it suitable for a wide range of environments
Applications
The ADC12032CIWM/NOPB is versatile and can be used in various applications, including:
- Data acquisition systems
- Industrial control systems
- Medical devices
- Aerospace and defense systems
- Automotive systems
Q & A
- What is the resolution of the ADC12032CIWM/NOPB? The resolution is 12 bits.
- What is the maximum sampling rate of the ADC12032CIWM/NOPB? The maximum sampling rate is up to 200 kSPS.
- What is the package type of the ADC12032CIWM/NOPB? The package type is 20-SOIC (0.295", 7.50mm Width).
- What is the operating temperature range of the ADC12032CIWM/NOPB? The operating temperature range is from -40°C to 85°C.
- What is the supply voltage range for the ADC12032CIWM/NOPB? The supply voltage range is from 2.7V to 5.5V.
- What type of interface does the ADC12032CIWM/NOPB use? It uses an SPI-compatible serial interface.
- Is the ADC12032CIWM/NOPB suitable for high-speed applications? Yes, it is suitable for high-speed applications due to its high sampling rate.
- Can the ADC12032CIWM/NOPB be used in medical devices? Yes, it can be used in medical devices due to its high accuracy and reliability.
- Where can I find the datasheet for the ADC12032CIWM/NOPB? The datasheet can be found on websites such as Wolfchip Electronics or other authorized distributors.
- Who is the manufacturer of the ADC12032CIWM/NOPB? The manufacturer is National Semiconductor, now part of Texas Instruments.
