Overview

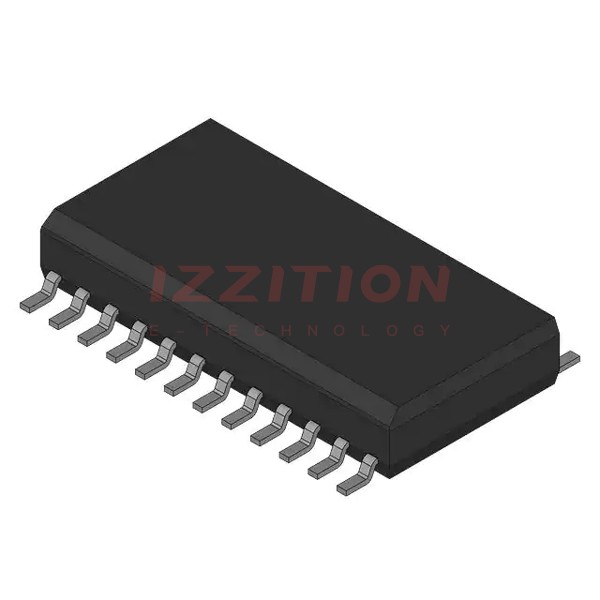

The ADC1175-50CIJMX/NOPB is an 8-bit analog-to-digital converter (ADC) produced by National Semiconductor, now part of Texas Instruments. This component is designed for high-speed conversion and is suitable for a variety of applications requiring precise and rapid analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 8 bits |
| Number of Channels | 1 |
| Conversion Rate | 20 MHz |
| Power Consumption | 60 mW |
| Package Type | MSOP-8 |
| Operating Temperature Range | -40°C to 85°C |
Key Features
- High-speed conversion rate of up to 20 MHz
- Low power consumption of 60 mW
- Single-channel, 8-bit resolution
- Resistance ladder architecture for accurate conversions
- Compact MSOP-8 package
- Wide operating temperature range from -40°C to 85°C
Applications
The ADC1175-50CIJMX/NOPB is versatile and can be used in various applications, including:
- High-speed data acquisition systems
- Industrial control systems
- Medical devices requiring fast and accurate analog-to-digital conversion
- Aerospace and defense systems where high reliability is crucial
- Automotive systems for sensor data processing
Q & A
- What is the resolution of the ADC1175-50CIJMX/NOPB?
The resolution is 8 bits. - How many channels does the ADC1175-50CIJMX/NOPB have?
It has one channel. - What is the maximum conversion rate of the ADC1175-50CIJMX/NOPB?
The maximum conversion rate is 20 MHz. - What is the power consumption of the ADC1175-50CIJMX/NOPB?
The power consumption is 60 mW. - What is the package type of the ADC1175-50CIJMX/NOPB?
The package type is MSOP-8. - What is the operating temperature range of the ADC1175-50CIJMX/NOPB?
The operating temperature range is from -40°C to 85°C. - Who is the manufacturer of the ADC1175-50CIJMX/NOPB?
The manufacturer is National Semiconductor, now part of Texas Instruments. - What architecture does the ADC1175-50CIJMX/NOPB use for conversions?
It uses a resistance ladder architecture. - In what types of systems is the ADC1175-50CIJMX/NOPB commonly used?
It is commonly used in high-speed data acquisition systems, industrial control systems, medical devices, aerospace and defense systems, and automotive systems. - Where can I find detailed specifications and datasheets for the ADC1175-50CIJMX/NOPB?
Detailed specifications and datasheets can be found on the official Texas Instruments website, as well as on distributor websites such as Heisener Electronics and Worldway Electronics.
