Overview

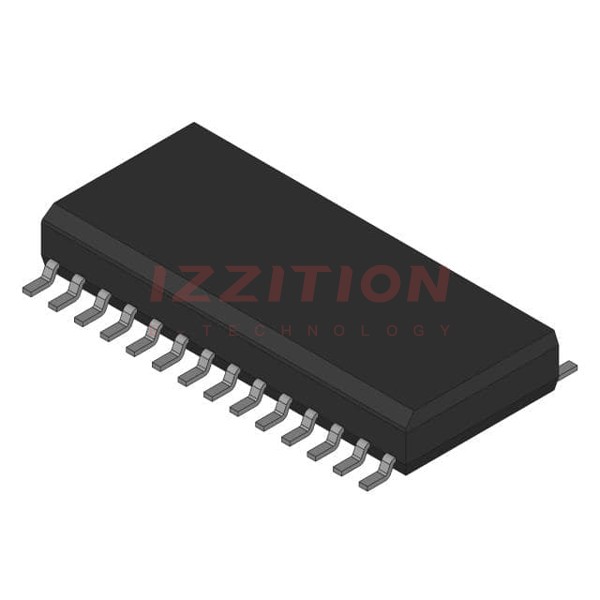

The ADC10464CIWM/NOPB is a 10-bit analog-to-digital converter (ADC) manufactured by National Semiconductor, now part of Texas Instruments. This component is designed to provide high-speed conversion with low power consumption, making it suitable for a variety of applications requiring precise and efficient analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 10 bits |
| Conversion Time | 600 ns |
| Supply Voltage | 2.7V to 5.25V |
| Power Consumption | Typically 3.5 mW at 3V |
| Package Type | 28-pin SOIC |
| Operating Temperature | -40°C to 85°C |
| DNL (Differential Non-Linearity) | ±0.5 LSB |
| INL (Integral Non-Linearity) | ±1 LSB |
Key Features
- High-speed conversion rate of 600 ns
- Low power consumption, typically 3.5 mW at 3V
- 10-bit resolution with ±0.5 LSB DNL and ±1 LSB INL
- Operating voltage range of 2.7V to 5.25V
- 28-pin SOIC package for compact design
- Wide operating temperature range from -40°C to 85°C
Applications
The ADC10464CIWM/NOPB is versatile and can be used in various applications, including:
- Industrial control systems
- Medical devices requiring high precision and low power
- Aerospace and defense systems
- Automotive systems for sensor data conversion
- Consumer electronics such as audio and video equipment
Q & A
- What is the resolution of the ADC10464CIWM/NOPB?
The ADC10464CIWM/NOPB has a resolution of 10 bits. - What is the typical conversion time of this ADC?
The typical conversion time is 600 ns. - What is the power consumption of this ADC at 3V supply voltage?
The power consumption is typically 3.5 mW at 3V. - What is the package type of the ADC10464CIWM/NOPB?
The package type is 28-pin SOIC. - What is the operating temperature range of this ADC?
The operating temperature range is from -40°C to 85°C. - What are the typical values for DNL and INL?
The typical values are ±0.5 LSB for DNL and ±1 LSB for INL. - Can this ADC be used in high-speed applications?
Yes, it is suitable for high-speed applications due to its fast conversion rate. - Is this ADC suitable for low-power designs?
Yes, it is designed for low power consumption, making it suitable for battery-powered devices. - What are some common applications of the ADC10464CIWM/NOPB?
It is commonly used in industrial control systems, medical devices, aerospace and defense systems, automotive systems, and consumer electronics. - Who is the manufacturer of the ADC10464CIWM/NOPB?
The manufacturer is National Semiconductor, now part of Texas Instruments.
