ADC101S021CIMFX
  • Share:

National Semiconductor ADC101S021CIMFX

Manufacturer No:
ADC101S021CIMFX
Manufacturer:
National Semiconductor
Package:
Bulk
Description:

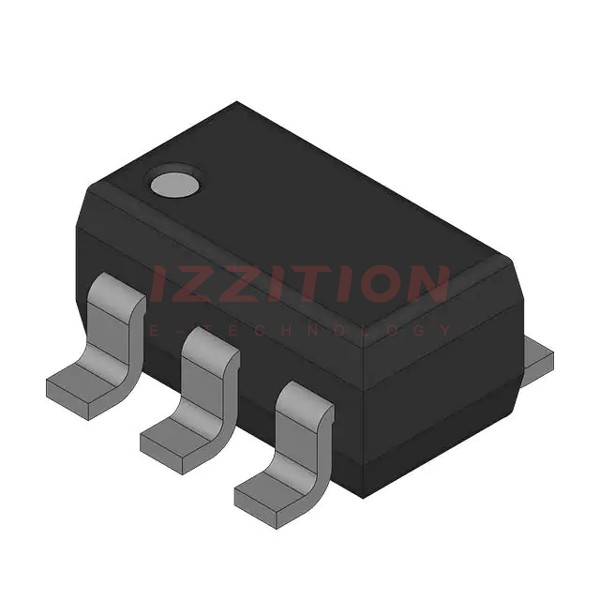

IC ADC 10BIT SAR SOT23-6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ADC101S021CIMFX is a 10-bit, single-channel analog-to-digital converter (ADC) produced by National Semiconductor. This component is part of the ADC101S021 series and is packaged in a SOT-23-6 package. It is designed for high-speed conversion with a successive approximation register (SAR) architecture, making it suitable for a variety of applications requiring precise and rapid analog-to-digital conversion.

Key Specifications

ParameterValue
Resolution10 bits
Number of Channels1
Conversion Rate200 kSPS
Package TypeSOT-23-6
Operating Voltage Range2.7V to 5.5V
InterfaceSPI-compatible serial interface
Temperature Range-40°C to 125°C
RoHS StatusCompliant

Key Features

  • High-speed 10-bit analog-to-digital conversion with a successive approximation register (SAR) architecture.
  • Single-channel input.
  • Conversion rate of up to 200 kSPS.
  • SPI-compatible serial interface for easy communication with microcontrollers.
  • Low power consumption, making it suitable for battery-powered devices.
  • Compact SOT-23-6 package, ideal for space-constrained applications.

Applications

The ADC101S021CIMFX is versatile and can be used in various applications, including:

  • Industrial control systems.
  • Medical devices requiring precise analog-to-digital conversion.
  • Aerospace and defense systems where high reliability is crucial.
  • Automotive systems for sensor data acquisition.
  • Consumer electronics such as audio and video equipment.

Q & A

  1. What is the resolution of the ADC101S021CIMFX?
    The ADC101S021CIMFX has a resolution of 10 bits.
  2. How many channels does the ADC101S021CIMFX have?
    The ADC101S021CIMFX has a single channel.
  3. What is the conversion rate of the ADC101S021CIMFX?
    The conversion rate is up to 200 kSPS.
  4. What is the package type of the ADC101S021CIMFX?
    The package type is SOT-23-6.
  5. What is the operating voltage range of the ADC101S021CIMFX?
    The operating voltage range is from 2.7V to 5.5V.
  6. Is the ADC101S021CIMFX RoHS compliant?
    Yes, the ADC101S021CIMFX is RoHS compliant.
  7. What type of interface does the ADC101S021CIMFX use?
    The ADC101S021CIMFX uses an SPI-compatible serial interface.
  8. What is the temperature range for the ADC101S021CIMFX?
    The temperature range is from -40°C to 125°C.
  9. What are some typical applications for the ADC101S021CIMFX?
    Typical applications include industrial control systems, medical devices, aerospace and defense systems, automotive systems, and consumer electronics.
  10. How does the ADC101S021CIMFX achieve high-speed conversion?
    The ADC101S021CIMFX achieves high-speed conversion using a successive approximation register (SAR) architecture.

Product Attributes

Number of Bits:10
Sampling Rate (Per Second):200k
Number of Inputs:1
Input Type:Single Ended
Data Interface:SPI, DSP
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:Supply
Voltage - Supply, Analog:2.7V ~ 5.25V
Voltage - Supply, Digital:2.7V ~ 5.25V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:SOT-23-6
Supplier Device Package:SOT-23-6
Mounting Type:Surface Mount
