Overview
The ADC10064CIWM/NOPB is a high-performance analog-to-digital converter (ADC) produced by National Semiconductor. This component is designed to provide accurate and reliable conversion of analog signals to digital data, making it suitable for a variety of applications in industrial, medical, and consumer electronics.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 10 bits |
| Number of Channels | Single-ended, 4-channel multiplexed |
| Conversion Rate | Up to 100 kSPS |

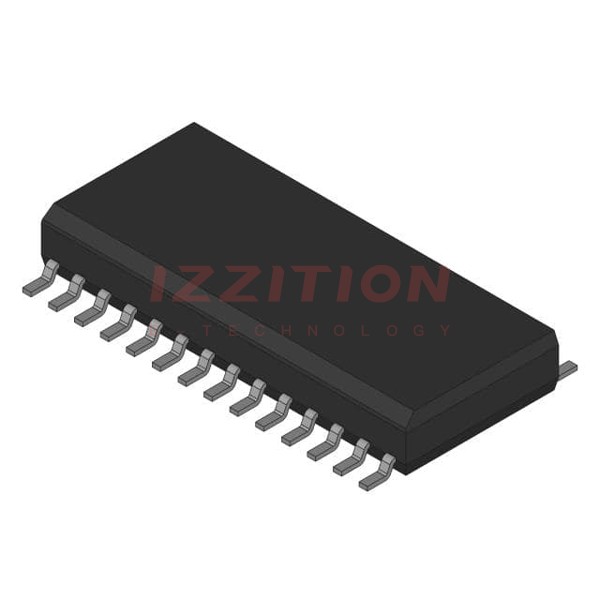

| Package Type | 28-SOIC (0.295", 7.50mm Width) |
| Operating Voltage | 2.7V to 5.25V |
| Interface | SPI-compatible serial interface |
| Temperature Range | -40°C to +85°C |
Key Features
- High-speed conversion rate of up to 100 kSPS.
- Low power consumption, making it suitable for battery-powered devices.
- SPI-compatible serial interface for easy communication with microcontrollers.
- Internal reference voltage option for simplified system design.
- Small 28-SOIC package for space-efficient designs.
Applications
- Industrial control systems: For monitoring and controlling various industrial processes.
- Medical devices: For precise measurement in medical equipment such as ECGs and blood glucose monitors.
- Consumer electronics: For audio and video processing in devices like digital cameras and audio recorders.
- Aerospace and defense: For high-reliability applications requiring precise data conversion.
Q & A
- What is the resolution of the ADC10064CIWM/NOPB?
The ADC10064CIWM/NOPB has a resolution of 10 bits. - How many channels does the ADC10064CIWM/NOPB support?
The ADC10064CIWM/NOPB supports 4 single-ended channels with a multiplexer. - What is the maximum conversion rate of the ADC10064CIWM/NOPB?
The maximum conversion rate is up to 100 kSPS. - What is the package type of the ADC10064CIWM/NOPB?
The package type is 28-SOIC (0.295", 7.50mm Width). - What is the operating voltage range of the ADC10064CIWM/NOPB?
The operating voltage range is 2.7V to 5.25V. - Does the ADC10064CIWM/NOPB have an internal reference voltage option?
Yes, it has an internal reference voltage option. - What type of interface does the ADC10064CIWM/NOPB use?
The ADC10064CIWM/NOPB uses an SPI-compatible serial interface. - What is the temperature range for the ADC10064CIWM/NOPB?
The temperature range is -40°C to +85°C. - Is the ADC10064CIWM/NOPB suitable for battery-powered devices?
Yes, it is suitable due to its low power consumption. - Where can I find the datasheet for the ADC10064CIWM/NOPB?
You can find the datasheet on the National Semiconductor website or through distributors like 18IC and AllDataSheet.
