Overview

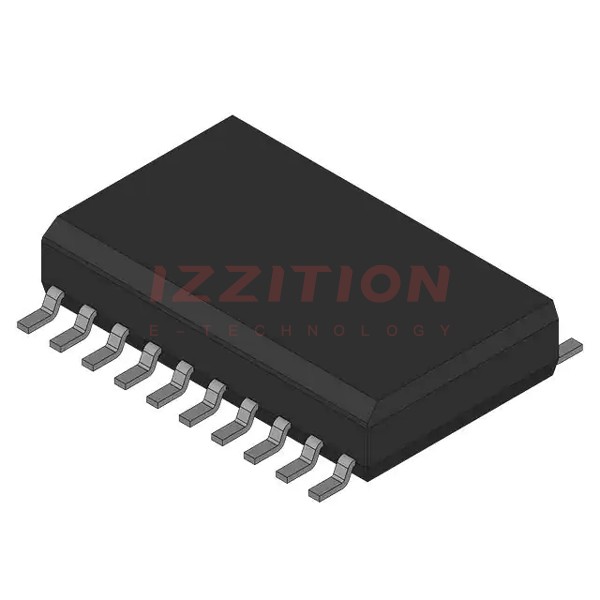

The ADC0820CCWM is an 8-bit analog-to-digital converter (ADC) produced by National Semiconductor, now part of Texas Instruments. This integrated circuit is designed to provide high-speed and accurate analog-to-digital conversion, making it suitable for a variety of applications in industrial, automotive, and consumer electronics.
Key Specifications
| Specification | Value |
|---|---|
| Part Number | ADC0820CCWM |
| Manufacturer | National Semiconductor (now Texas Instruments) |
| Description | Analog Digital Converter, Single, 8 Bit |
| Package / Case | SOP20 |
| Pins | 20 |
| Resolution | 8 Bits |
| Packaging | Tube |
| Part Status | Last Time Buy |
Key Features
- High-speed analog-to-digital conversion
- 8-bit resolution
- Single-channel ADC
- SOP20 package for compact design
- Suitable for various applications including industrial, automotive, and consumer electronics
Applications
The ADC0820CCWM is versatile and can be used in a range of applications, including:
- Industrial control systems
- Automotive systems
- Consumer electronics such as audio and video equipment
- Medical devices requiring precise analog-to-digital conversion
- Data acquisition systems
Q & A
- What is the resolution of the ADC0820CCWM?
The ADC0820CCWM has an 8-bit resolution. - What is the package type of the ADC0820CCWM?
The ADC0820CCWM comes in a SOP20 package. - Who is the manufacturer of the ADC0820CCWM?
The ADC0820CCWM is manufactured by National Semiconductor, now part of Texas Instruments. - What is the part status of the ADC0820CCWM?
The ADC0820CCWM is listed as Last Time Buy. - What are some common applications of the ADC0820CCWM?
Common applications include industrial control systems, automotive systems, consumer electronics, medical devices, and data acquisition systems. - How many pins does the ADC0820CCWM have?
The ADC0820CCWM has 20 pins. - What is the packaging type for the ADC0820CCWM?
The ADC0820CCWM is packaged in tubes. - Is the ADC0820CCWM still available for purchase?
Yes, it is available from various distributors, although it is listed as Last Time Buy. - What are the key features of the ADC0820CCWM?
Key features include high-speed analog-to-digital conversion, 8-bit resolution, single-channel ADC, and a compact SOP20 package. - Where can I find detailed specifications for the ADC0820CCWM?
Detailed specifications can be found in the datasheet available from the manufacturer's website or through distributors like DigiKey and Heisener.
