Overview
The NC7SZ04M5X_F40, produced by onsemi, is a single inverter from the Ultra-High Speed (UHS) series of TinyLogic devices. Fabricated with advanced CMOS technology, this component is designed to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range of 1.65 V to 5.5 V. This device is particularly useful in applications requiring fast logic operations and low power consumption.
Key Specifications
| Parameter | Min | Typical | Max | Unit |
|---|---|---|---|---|
| VCC Supply Voltage | −0.5 | 6.5 | V | |
| VIN DC Input Voltage | −0.5 | 6.5 | V | |
| VOH HIGH Level Output Voltage (VCC = 3 V, IOH = −4 mA) | 2.40 | 2.68 | V | |
| VOL LOW Level Output Voltage (VCC = 3 V, IOL = 4 mA) | −0.15 | 0.40 | V | |
| tPLH, tPHL Propagation Delay (VCC = 3.3 V, CL = 50 pF, RL = 500 Ω) | 2.1 | 4.5 | ns | |
| ICC Quiescent Supply Current (VCC = 3 V, VIN = 5.5 V) | − | 2.0 | 20 | μA |
| TSTG Storage Temperature Range | −65 | +150 | °C | |
| TJ Junction Temperature Under Bias | − | +150 | °C |
Key Features
- Ultra-High Speed: Propagation delay of 2.4 ns (typical) into 50 pF at 5 V VCC.
- High Output Drive: ±24 mA at 3 V VCC.
- Broad VCC Operating Range: 1.65 V to 5.5 V.
- Power Down High-Impedance Inputs / Outputs: Inputs and output are high-impedance when VCC is 0 V.
- Over-Voltage Tolerance Inputs: Inputs tolerate voltages up to 5.5 V, independent of VCC operating voltage.
- Proprietary Noise / EMI Reduction Circuitry: Enhances signal integrity.

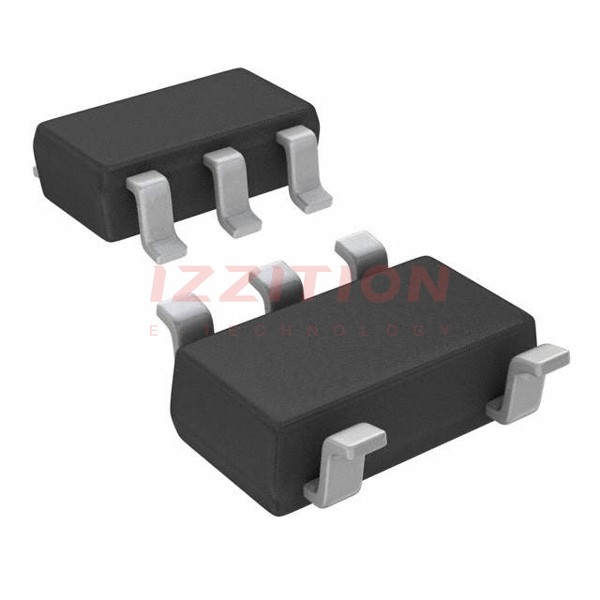

- Ultra-Small MicroPak™ Packages: Available in SOT23-5, SC-74A, SC-88A, and MicroPak packages.
- Pb-Free, Halogen Free/BFR Free and RoHS Compliant: Environmentally friendly packaging.
Applications
The NC7SZ04M5X_F40 is suitable for a variety of applications requiring high-speed logic operations and low power consumption, such as:
- High-speed digital circuits.
- Low-power consumer electronics.
- Portable devices.
- Automotive systems.
- Industrial control systems.
Q & A
- What is the operating voltage range of the NC7SZ04M5X_F40?
The operating voltage range is from 1.65 V to 5.5 V.
- What is the typical propagation delay of the NC7SZ04M5X_F40 at 5 V VCC?
The typical propagation delay is 2.4 ns into 50 pF at 5 V VCC.
- What is the maximum output current of the NC7SZ04M5X_F40?
The maximum output current is ±50 mA.
- Is the NC7SZ04M5X_F40 RoHS compliant?
Yes, the device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant.
- What are the available package types for the NC7SZ04M5X_F40?
The device is available in SOT23-5, SC-74A, SC-88A, and MicroPak packages.
- What is the storage temperature range for the NC7SZ04M5X_F40?
The storage temperature range is from −65°C to +150°C.
- Can the inputs of the NC7SZ04M5X_F40 tolerate voltages higher than VCC?
Yes, the inputs can tolerate voltages up to 5.5 V, independent of the VCC operating voltage.
- What is the quiescent supply current of the NC7SZ04M5X_F40 at 3 V VCC?
The quiescent supply current is typically 2.0 μA at 3 V VCC.
- Is the NC7SZ04M5X_F40 suitable for high-speed digital circuits?
Yes, it is designed for ultra-high speed operations, making it suitable for high-speed digital circuits.
- Does the NC7SZ04M5X_F40 have any special handling requirements?
Unused inputs must be held HIGH or LOW and must not float.
