Overview
The LV52204MUTBG is a LED driver IC produced by onsemi. This component is designed as a stand-alone LED driver, configurable from 20mA to 150mA using external resistors, eliminating the need for a microcontroller. Although the LV52204MUTBG is currently obsolete and no longer manufactured, it remains relevant for existing designs and maintenance of older systems.
Key Specifications
| Specification | Value |
|---|---|

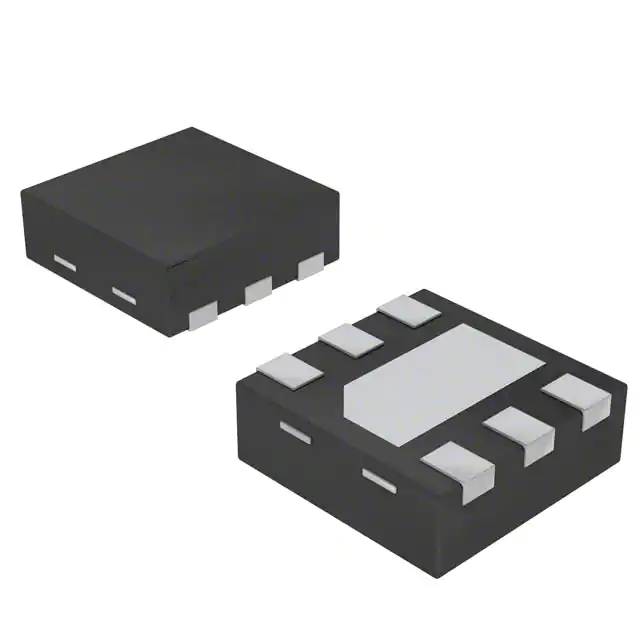

| Package Type | 6-UDFN (2x2) |
| Output Type | DC-DC Regulator, Step-Up (Boost) |
| Switch Current | 700mA |
| Dimming Type | Single-Wire Dimming |
| Current Adjustment Range | 20mA to 150mA (with external resistors) |
| Status | Obsolete |
Key Features
- Stand-alone operation without the need for a microcontroller.
- Configurable current output from 20mA to 150mA using external resistors.
- Single-wire dimming capability.
- Step-up (boost) DC-DC regulator.
- Compact 6-UDFN (2x2) package.
Applications
The LV52204MUTBG is suitable for various LED lighting applications, including but not limited to:
- General lighting systems.
- Automotive lighting.
- Industrial lighting.
- Consumer electronics with LED lighting requirements.
Q & A
- What is the LV52204MUTBG?
The LV52204MUTBG is a LED driver IC produced by onsemi, designed for stand-alone operation without a microcontroller.
- What is the current adjustment range of the LV52204MUTBG?
The current output can be adjusted from 20mA to 150mA using external resistors.
- What type of dimming does the LV52204MUTBG support?
The LV52204MUTBG supports single-wire dimming.
- What is the package type of the LV52204MUTBG?
The LV52204MUTBG comes in a 6-UDFN (2x2) package.
- Is the LV52204MUTBG still in production?
No, the LV52204MUTBG is obsolete and no longer manufactured.
- What are some potential applications for the LV52204MUTBG?
It is suitable for general lighting systems, automotive lighting, industrial lighting, and consumer electronics with LED lighting requirements.
- What is the switch current rating of the LV52204MUTBG?
The switch current rating is 700mA.
- Can the LV52204MUTBG be used in high-temperature environments?
Refer to the datasheet for specific temperature ratings and operating conditions.
- Are there any substitutes available for the LV52204MUTBG?
Yes, substitutes such as the LT3590ESC8#TRMPBF from Analog Devices are available.
- Where can I find detailed specifications for the LV52204MUTBG?
Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Digi-Key and Mouser Electronics.
